01
Lateral Column
Multiple lateral profiles support different distal geometries, shaft lengths and screw platforms.
Procedure Overview
Distal Humerus Fixation
Distal humerus projects may require lateral, medial or combined plate configurations. XC Medico brings together dedicated locking plate systems and complementary non-locking plates with compatible small-fragment screws and instruments.
The portfolio is organized for professional product comparison and procurement planning. Final implant selection and positioning remain anatomy-, fracture- and surgeon-specific.
For adjacent upper-limb planning, continue to the humeral shaft fracture fixation solution or proximal humerus fracture fixation solution.
Locking Range 4H to 12H
Non-Locking Range 3H to 18H
Side Options Left / Right
Material Titanium
System Architecture
Fixation Paths
02
Medial Column
Dedicated medial locking and reconstruction-style options extend the column-specific portfolio.
03
Combined Configuration
Coordinate side, plate family, hole count and screw compatibility when a multi-plate inventory is required.
Implant Portfolio
Implant Systems
Locking Plate Systems

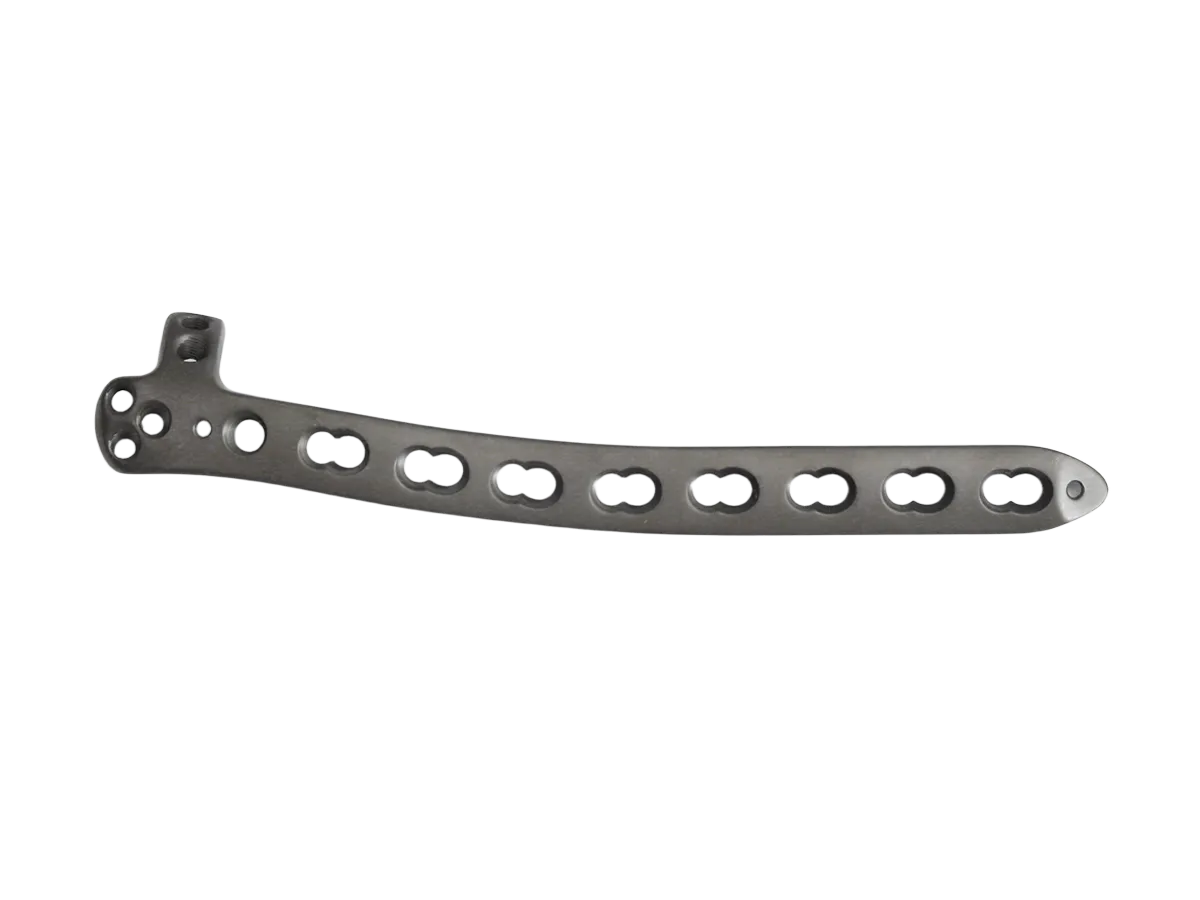

Distal Humerus Lateral Locking Plate-I
- REFRPG1YW1S4HR/HL-RPG1YW1S12HR/HL
- Options4H, 6H, 8H, 10H and 12H
- ScrewsHA 2.7/3.5 and HC 2.7/3.5

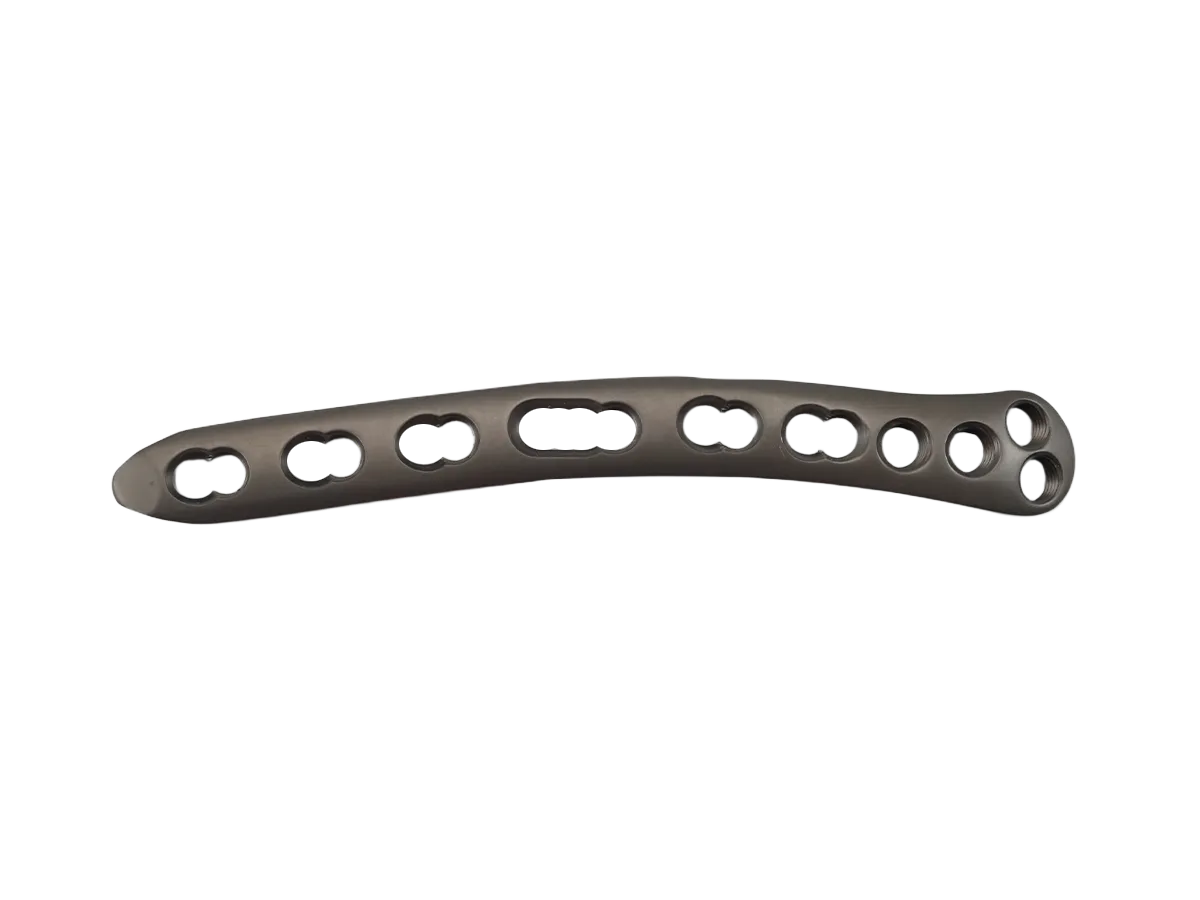

Distal Humerus Lateral Locking Plate-II
- REFRPG1YW2S4HR/HL-RPG1YW2S12HR/HL
- Options4H, 6H, 8H, 10H and 12H
- ScrewsHA 3.5 and HC 3.5

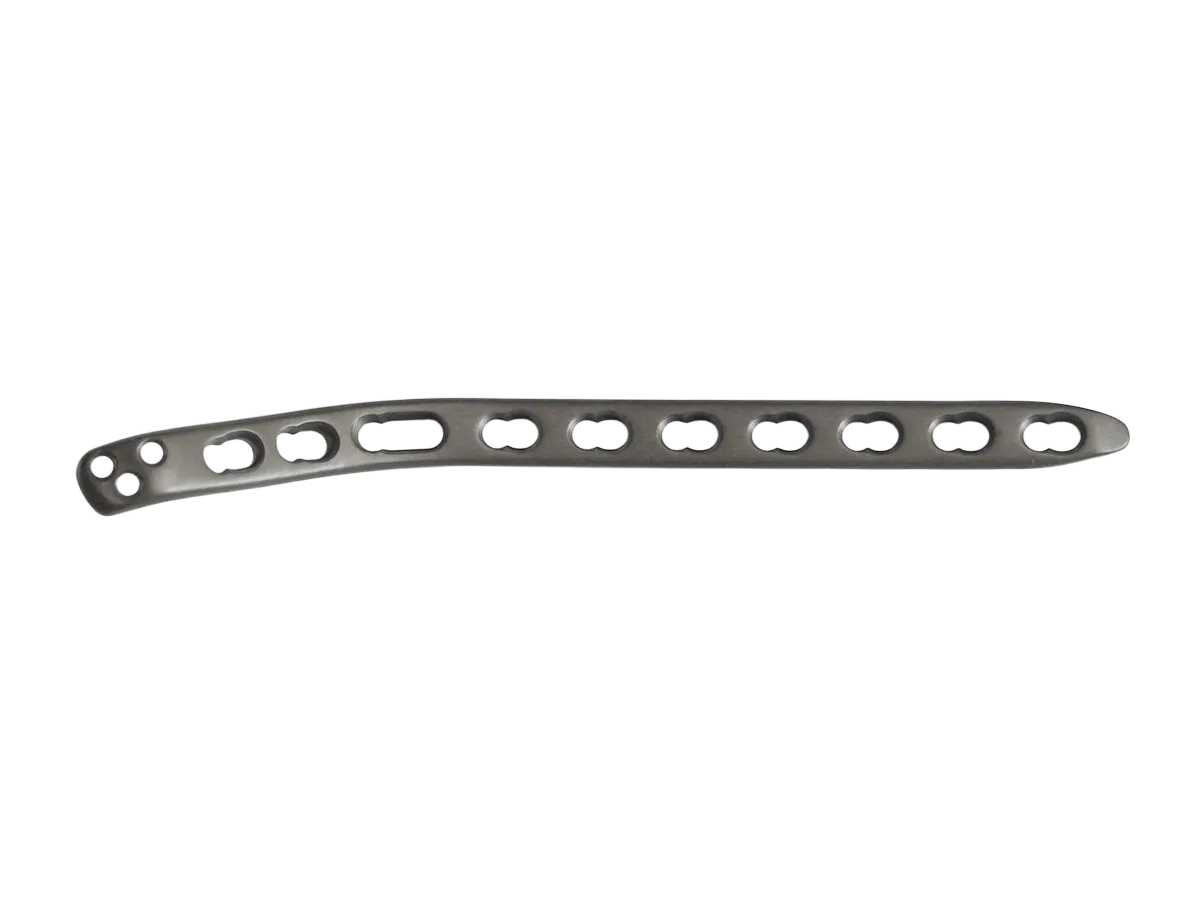

Distal Humerus Medial Locking Plate
- REFRPG1YNS4HR/HL-RPG1YNS12HR/HL
- Options4H, 6H, 8H, 10H and 12H
- ScrewsHA 2.7/3.5 and HC 2.7/3.5

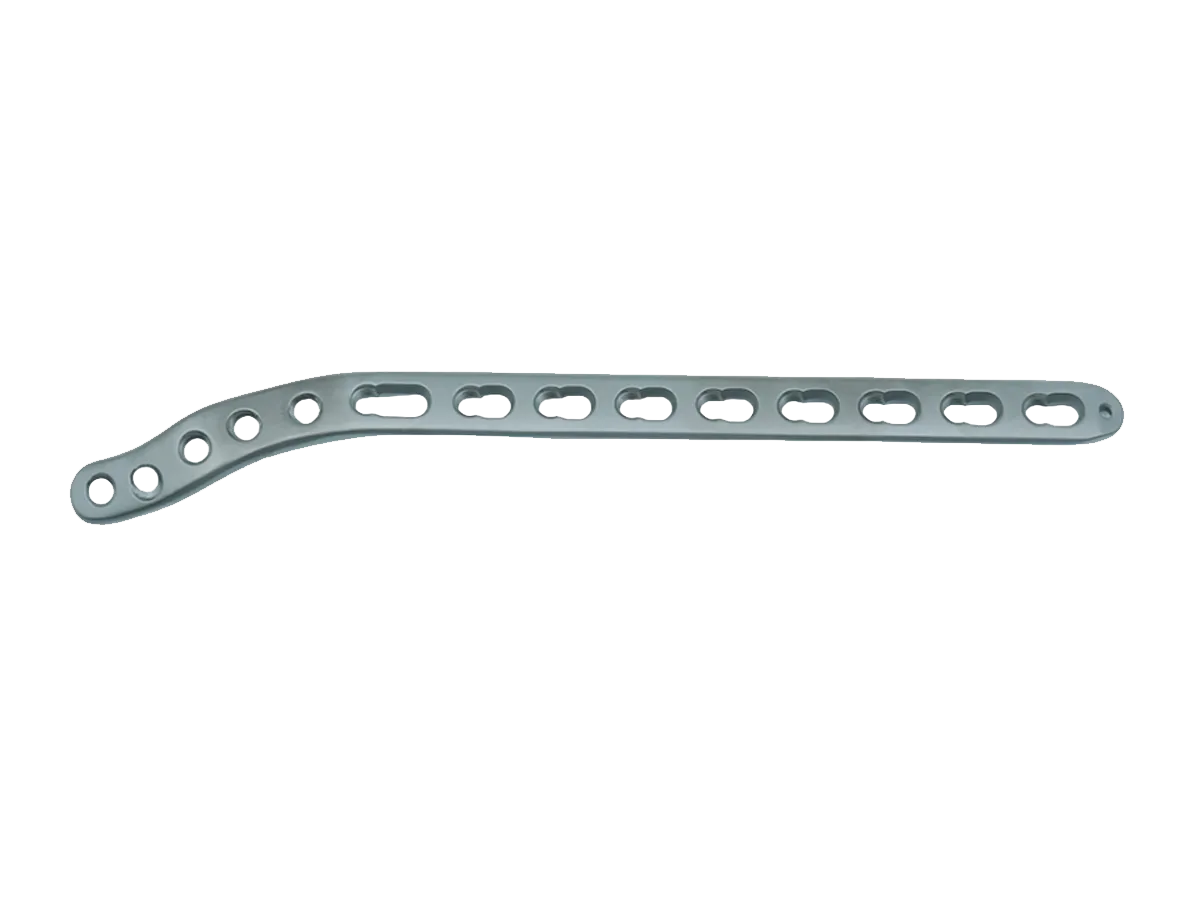

Locking Plate for Distal Humerus
- REFRPG1YWS4HR/HL-RPG1YWS12HR/HL
- Options4H, 6H, 8H, 10H and 12H
- ScrewsHA 3.5 and HC 3.5
Non-Locking Plate Systems

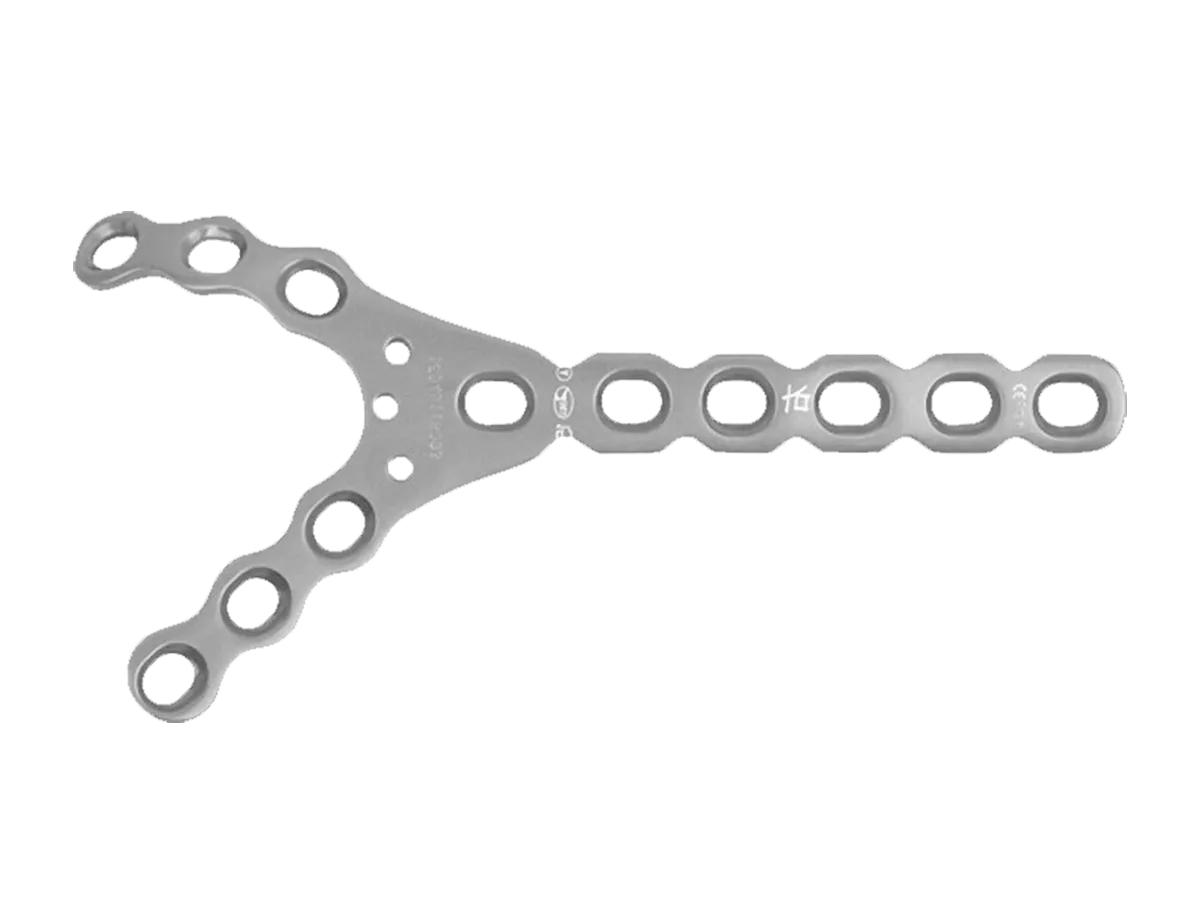

Y-shaped Humerus Condylus Plate
- REFRPYG1K3HL/HR-RPYG1K6HL/HR
- Options3H, 4H, 5H and 6H
- ScrewsHA 3.5 and HB 4.0

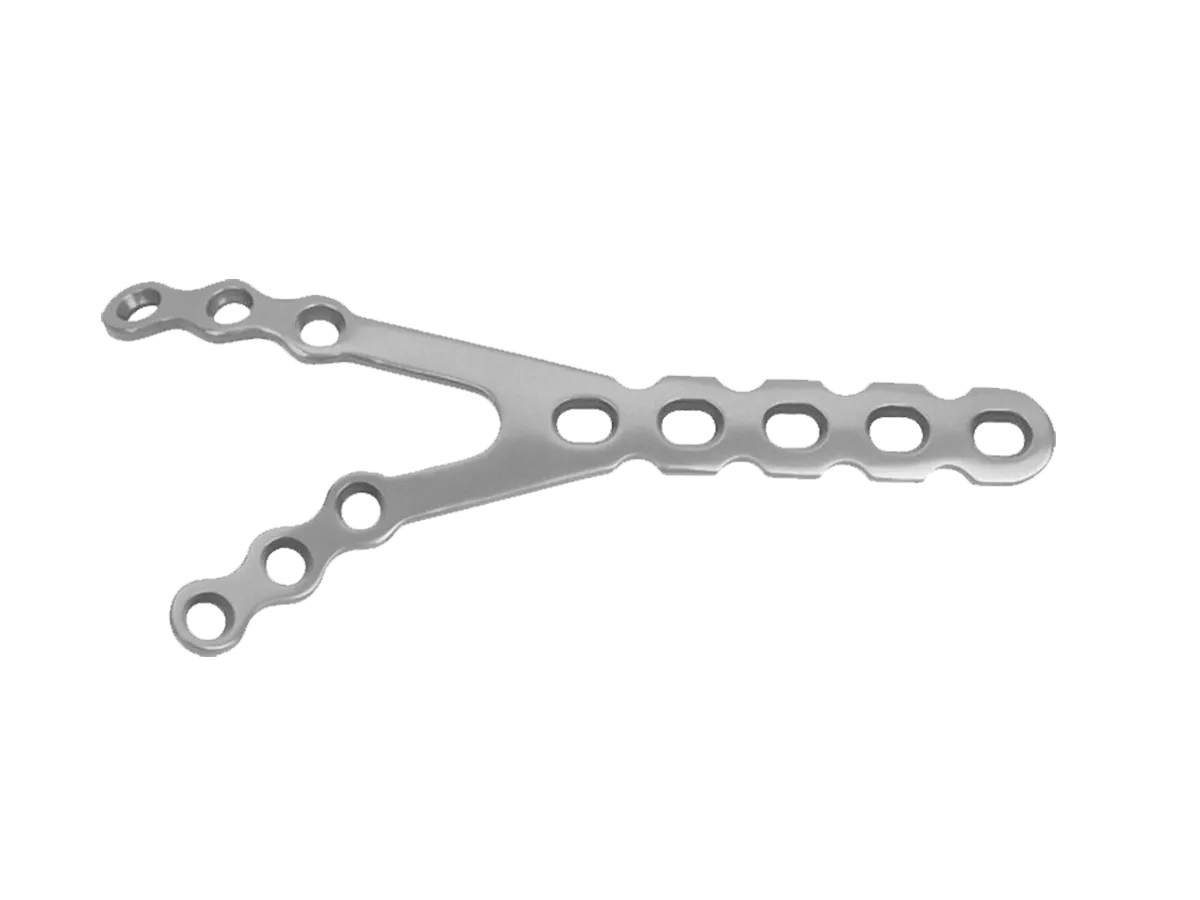

Distal Humeral ST Plate
- REFRPSTG1YD3HL/HR-RPSTG1YD6HL/HR
- Options3H, 4H, 5H and 6H
- ScrewsHA 3.5 and HB 4.0

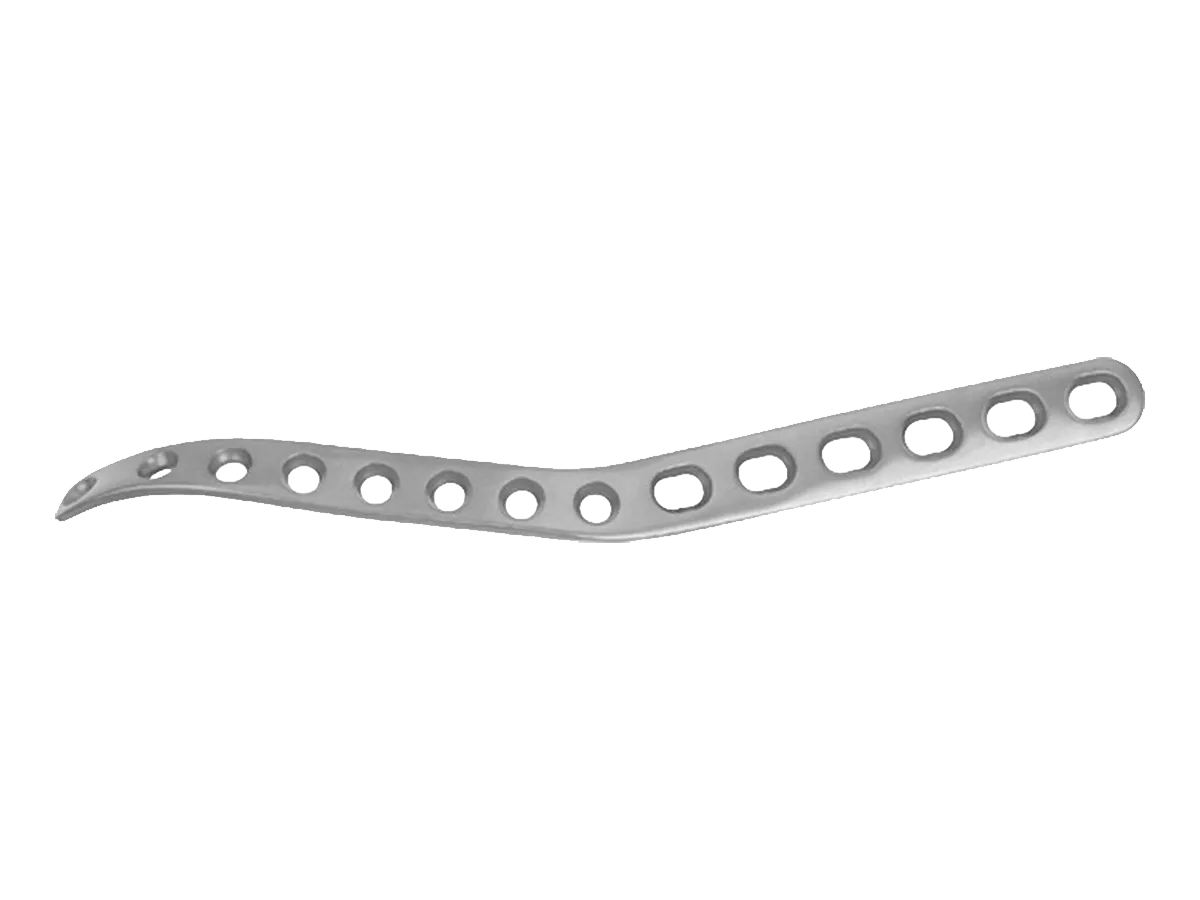

Distal Humeral Lateral Plate (Olecranon Type)
- REFRPYZG1YD12HL/HR-RPYZG1YD18HL/HR
- Options12H, 14H, 16H and 18H
- ScrewsHA 3.5 and HB 4.0

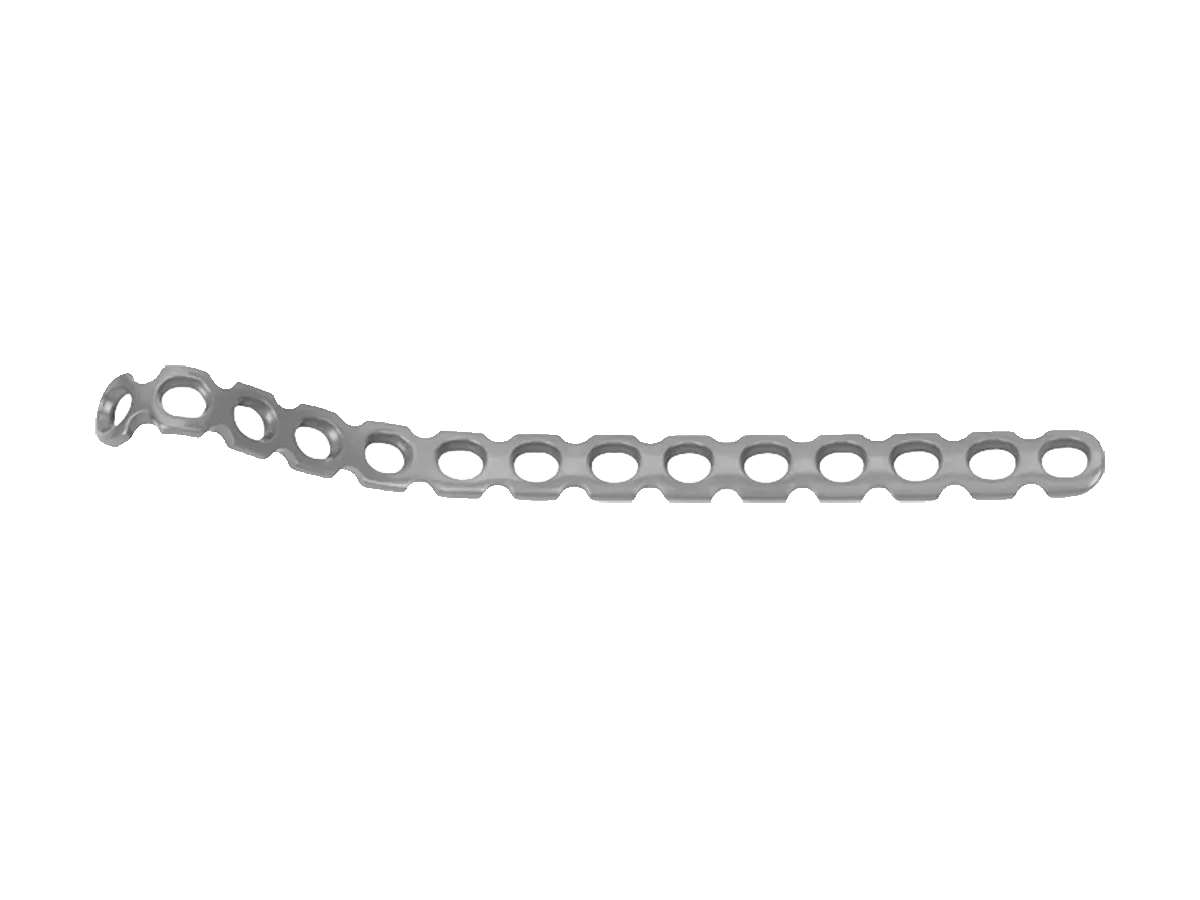

Distal Humeral Medial Plate (Reconstruction Type)
- REFRPCJG1YN10H, RPCJG1YN12H, RPCJG1YN14H
- Options10H, 12H and 14H
- ScrewsHA 3.5 and HB 4.0
Portfolio Matrix
System Configuration
| Implant Family | Type | Size Range | Side | Screw Platform |
|---|---|---|---|---|
| Lateral Locking Plate-I | Locking | 4H-12H | L / R | HA & HC 2.7/3.5 |
| Lateral Locking Plate-II | Locking | 4H-12H | L / R | HA & HC 3.5 |
| Medial Locking Plate | Locking | 4H-12H | L / R | HA & HC 2.7/3.5 |
| Locking Plate for Distal Humerus | Locking | 4H-12H | L / R | HA & HC 3.5 |
| Y-shaped Humerus Condylus Plate | Non-locking | 3H-6H | L / R | HA 3.5 / HB 4.0 |
| Distal Humeral ST Plate | Non-locking | 3H-6H | L / R | HA 3.5 / HB 4.0 |
| Lateral Plate (Olecranon Type) | Non-locking | 12H-18H | L / R | HA 3.5 / HB 4.0 |
| Medial Plate (Reconstruction Type) | Non-locking | 10H-14H | Universal | HA 3.5 / HB 4.0 |
Supporting Components
Screws & Instruments
Compatible Screw Platforms
Coordinate every plate reference with its specified locking screw, cortical or cancellous screw family.

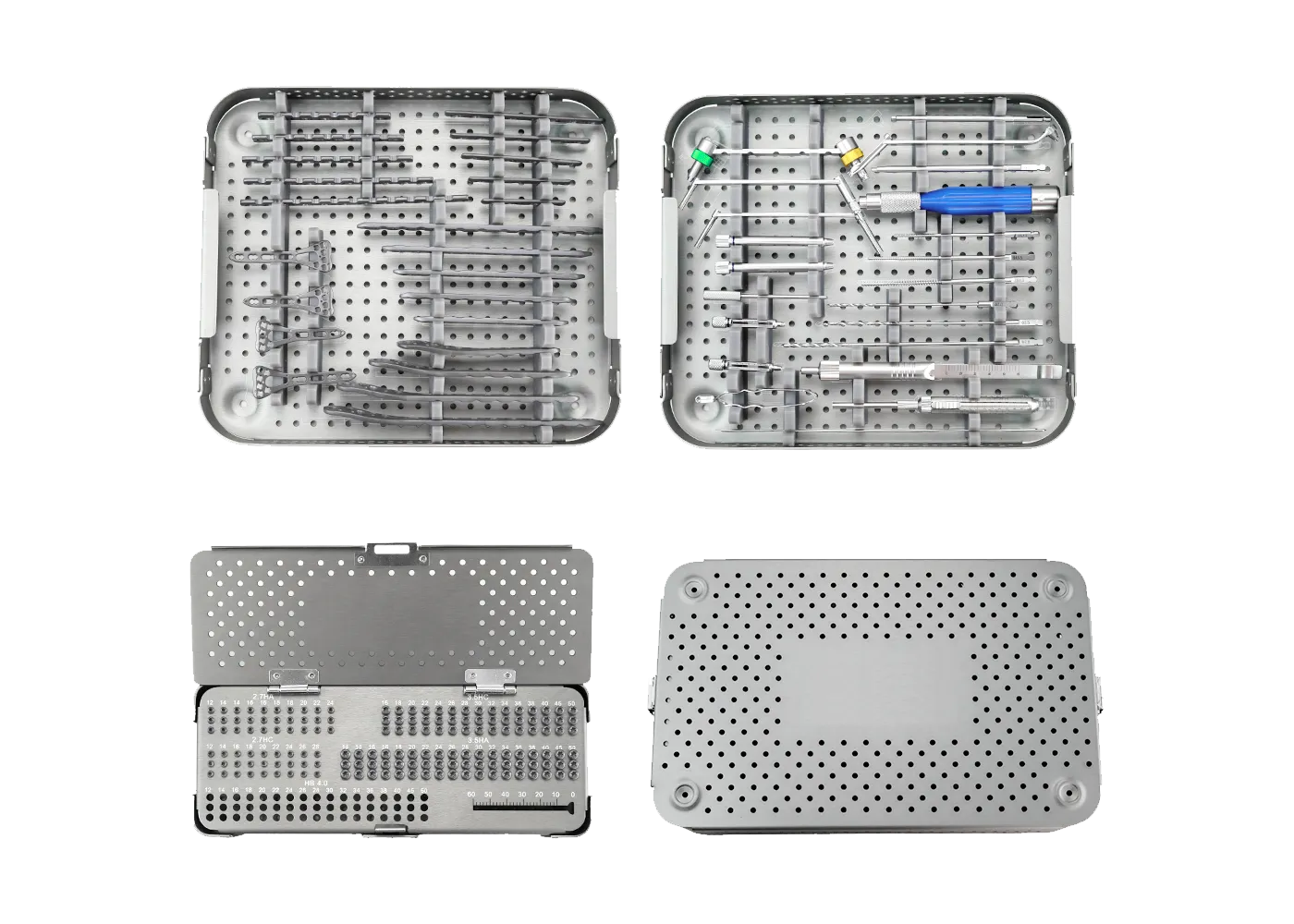

Small Surgery Instrument Set
The 2.7/3.5 mm small-fragment instrument set supports drilling, guiding, depth measurement, tapping and screw insertion, with an HB 4.0 tap included in the set.
Procedure Coordination

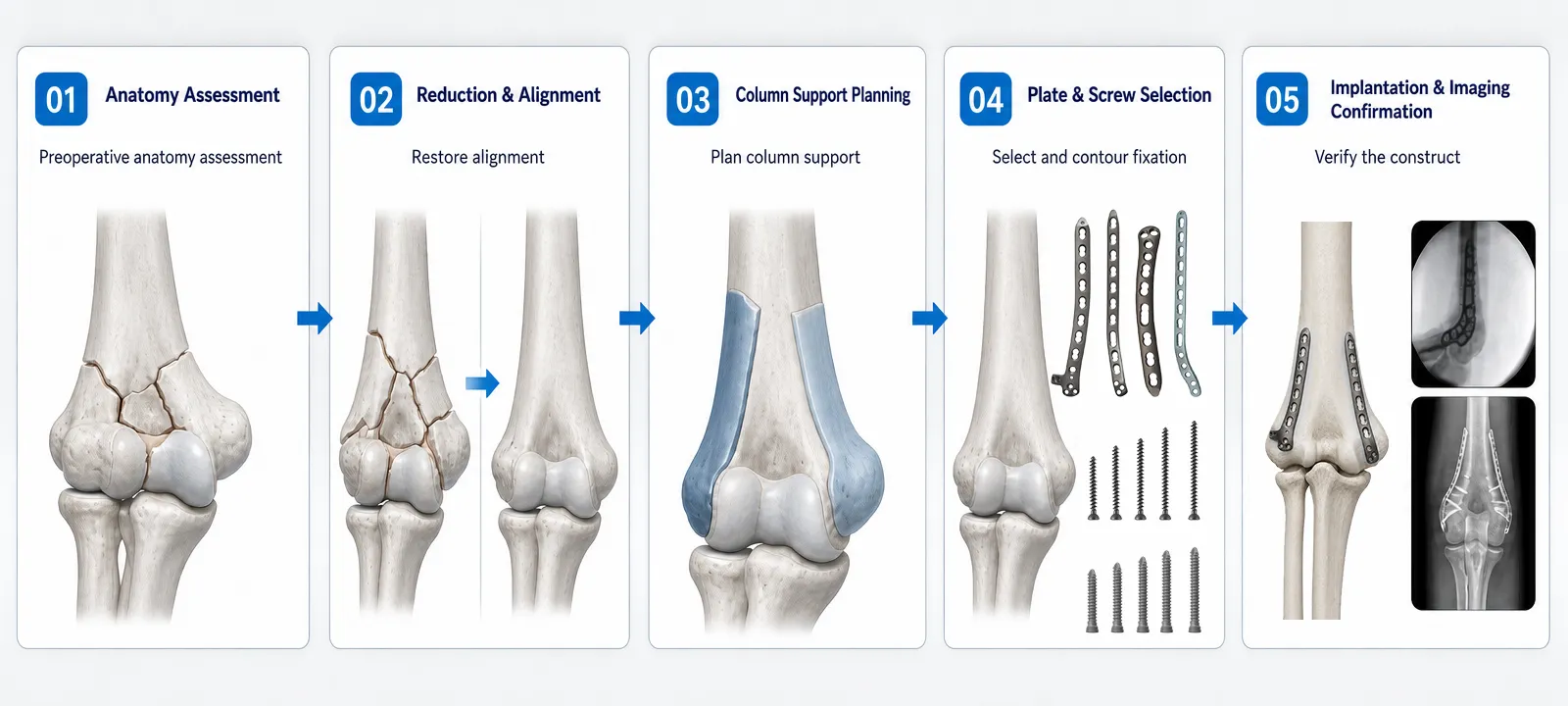

Fixation Workflow
01
Assess Anatomy
02
Reduce & Align
03
Plan Column Support
04
Select & Fix
05
Verify the Construct
System Value
System Advantages
Column-Specific Portfolio
Coordinate dedicated lateral and medial plate families within one system plan.
Locking & Non-Locking Options
Compare locking and non-locking plate principles while keeping each implant, screw and instrument configuration verified.
Structured Size Coverage
Compare side, hole count and screw family before confirming the order.
Coordinated Instrumentation
Pair implant and screw configurations with a dedicated small-fragment instrument platform.
Selection Support
System Matching Guide
Provide these project details so XC Medico can prepare a focused implant, screw and instrument proposal.
Anatomy & Pattern
- Distal humerus region involved
- Available imaging
- Left or right side
Plate Configuration
- Lateral, medial or combined inventory
- Locking or non-locking preference
- Required hole counts
Project Requirements
- Screw families and length range
- Instrument set requirements
- Market, quantity and delivery plan
B2B Support
Partnership Solutions
Product Matching
Plate, side, size and screw configuration support.
Sample Evaluation
Project-based sample and technical review coordination.
Distributor Support
Portfolio, catalog and training-material support.
OEM / ODM
Discuss packaging, branding and project requirements.

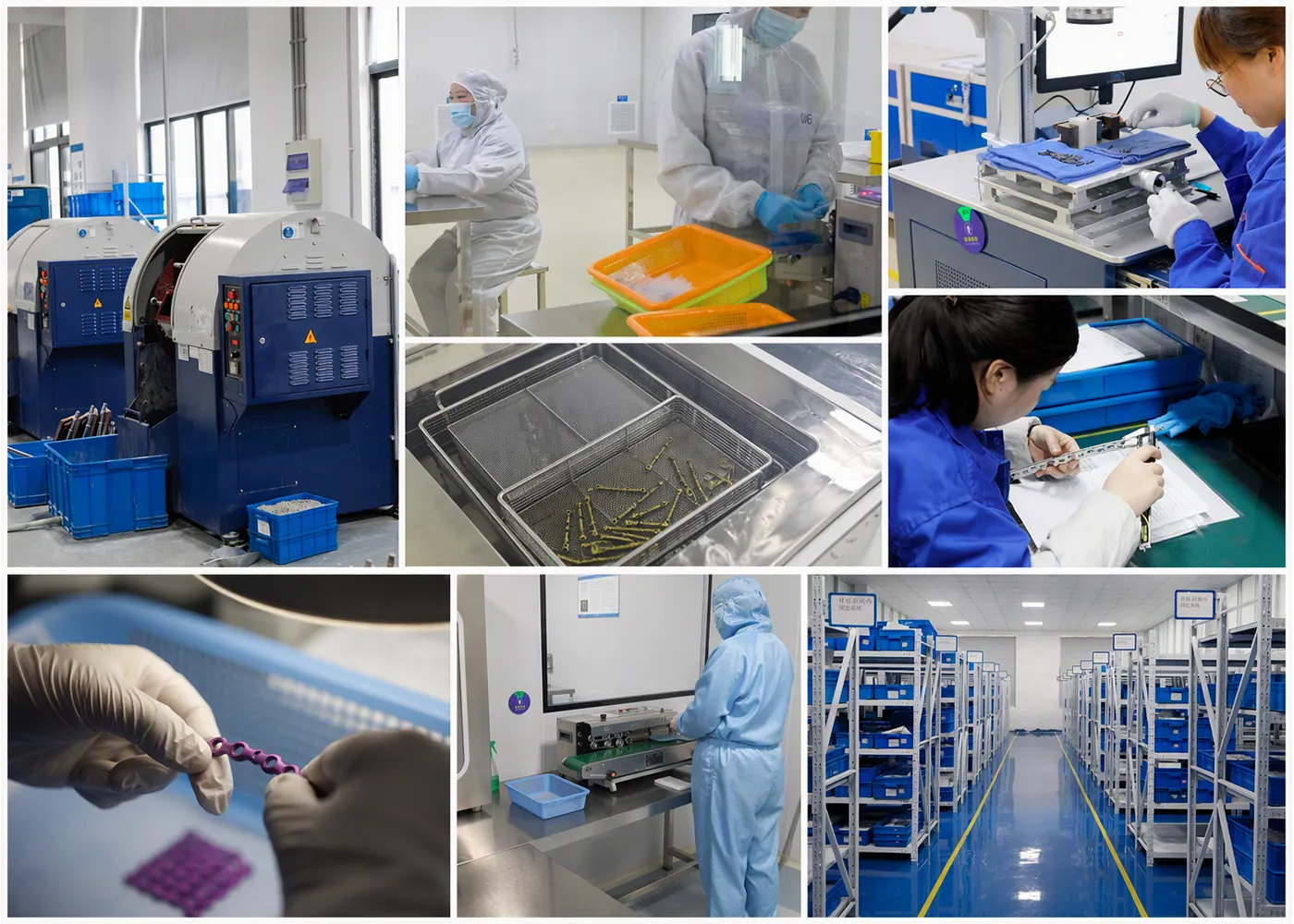

Review XC Medico's orthopedic implant manufacturing and quality control capabilities.
FAQ
Frequently Asked Questions
Which locking plates are available for distal humerus fixation?
The locking portfolio includes Distal Humerus Lateral Locking Plate-I, Lateral Locking Plate-II, Distal Humerus Medial Locking Plate and Locking Plate for Distal Humerus.
Are left and right plate options available?
Yes. All four locking families and three of the four non-locking families on this page include left and right options. The Medial Plate (Reconstruction Type) is listed by hole count without a side designation.
What screw platforms support the locking plates?
Depending on the plate family, the locking systems use HA and HC 2.7/3.5 screws or HA and HC 3.5 screws. Compatibility must be matched to the exact plate reference.
Which non-locking options are available?
The non-locking range includes the Y-shaped Humerus Condylus Plate, Distal Humeral ST Plate, Distal Humeral Lateral Plate (Olecranon Type) and Distal Humeral Medial Plate (Reconstruction Type).
Can XC Medico configure implants, screws and instruments together?
Yes. XC Medico can coordinate selected plate references, compatible screw families and the required small-fragment instrument platform for professional evaluation and procurement projects.
Is this page a surgical technique guide?
No. It is a system-planning overview for professional users. Surgical use must follow the current IFU, approved labeling, local requirements and the treating surgeon's judgment.
