Locking and non-locking plate platforms for coordinated radius and ulna shaft fixation projects.

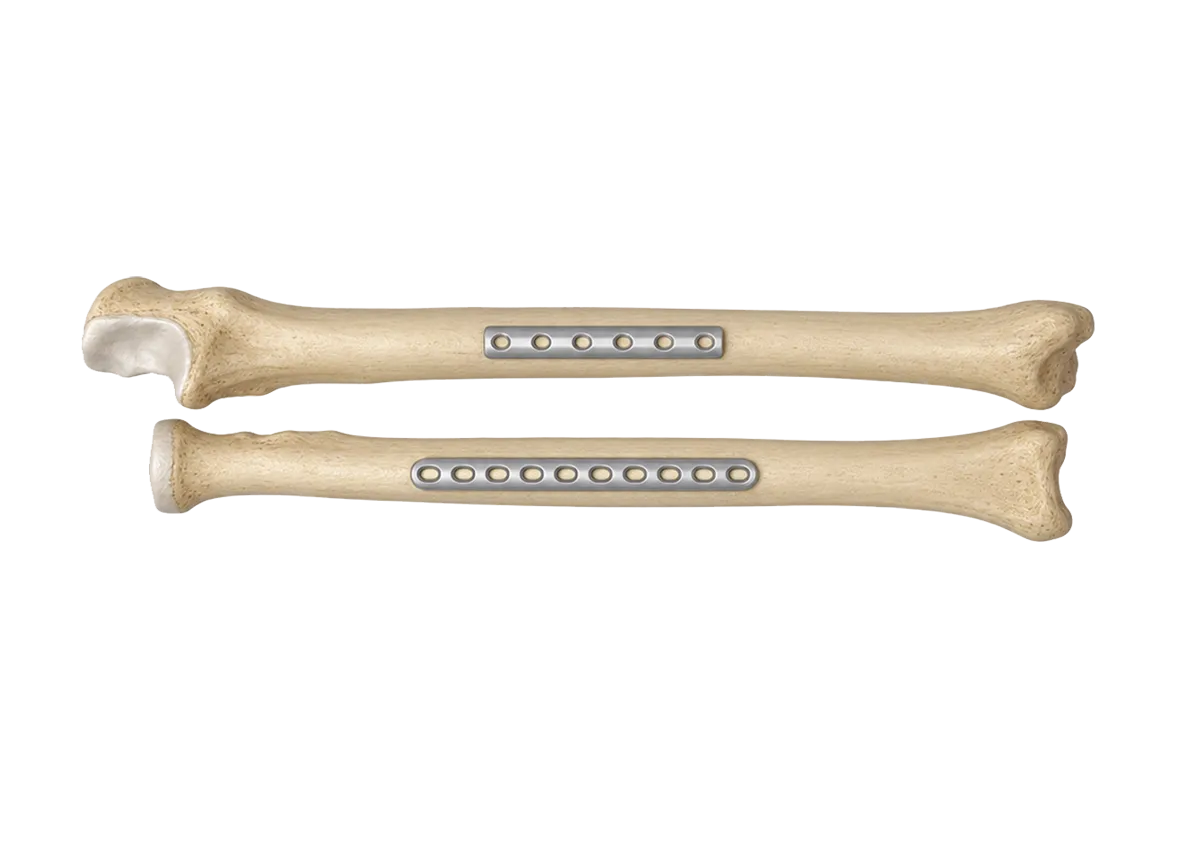

Forearm shaft projects require the radius and ulna to be evaluated independently while the overall construct is coordinated. XC Medico brings dedicated 3.5 mm locking and non-locking plate families, matching screws and small-fragment instruments into one system proposal. Buyers can also review the complete radius and ulna trauma portfolio.
System planning can be organized for requests involving both-bone forearm shaft fixation or an isolated radius or ulna shaft construct. Final implant selection remains subject to anatomy, fracture pattern, approved labeling and surgeon judgment.

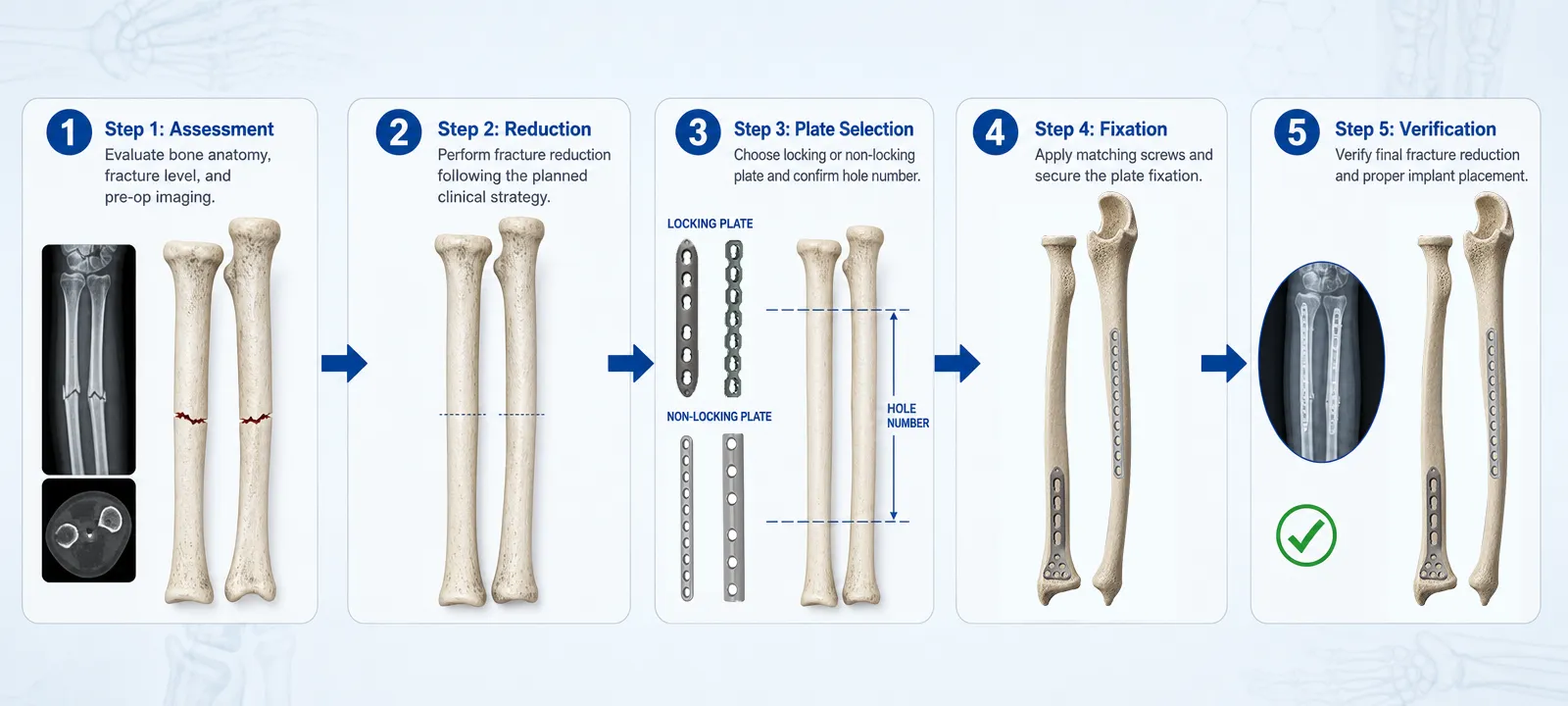

Match the plate family and length to the requested radial construct.
Coordinate the selected plate with the required screw and instrument platform.
Specify each plate independently, then consolidate screws and instruments.
Fixation Options
The selected plate family determines the screw combination and instrument pathway.

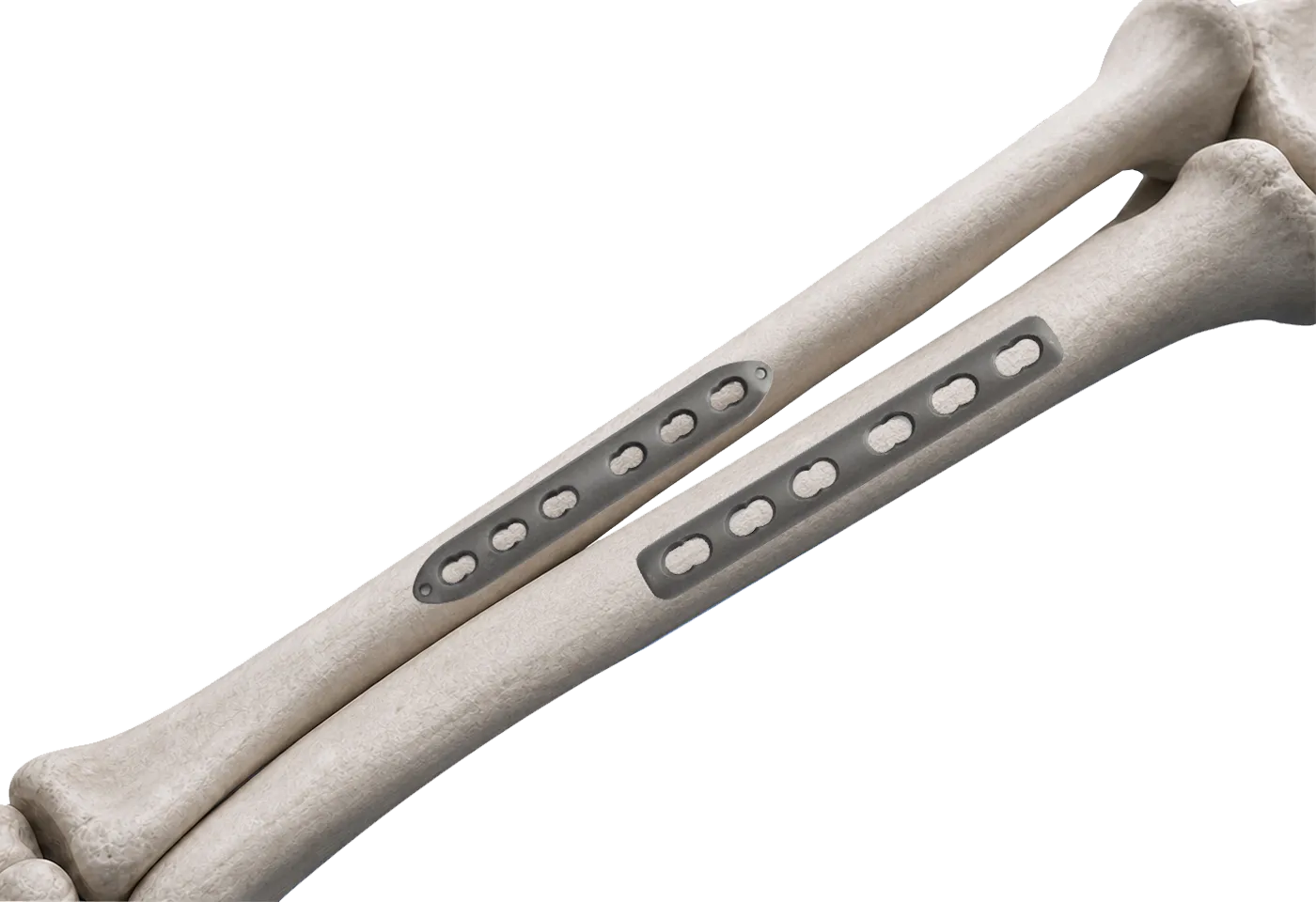

Choose the dedicated Ulna and Radius Locking Plate or the One-Third Tubular Locking Plate. Both use HA 3.5 cortical and HC 3.5 locking screws.
Choose the LC-DCP Ulna and Radius Plate or the One-third Tubular Plate. Both use HA 3.5 cortical screws.

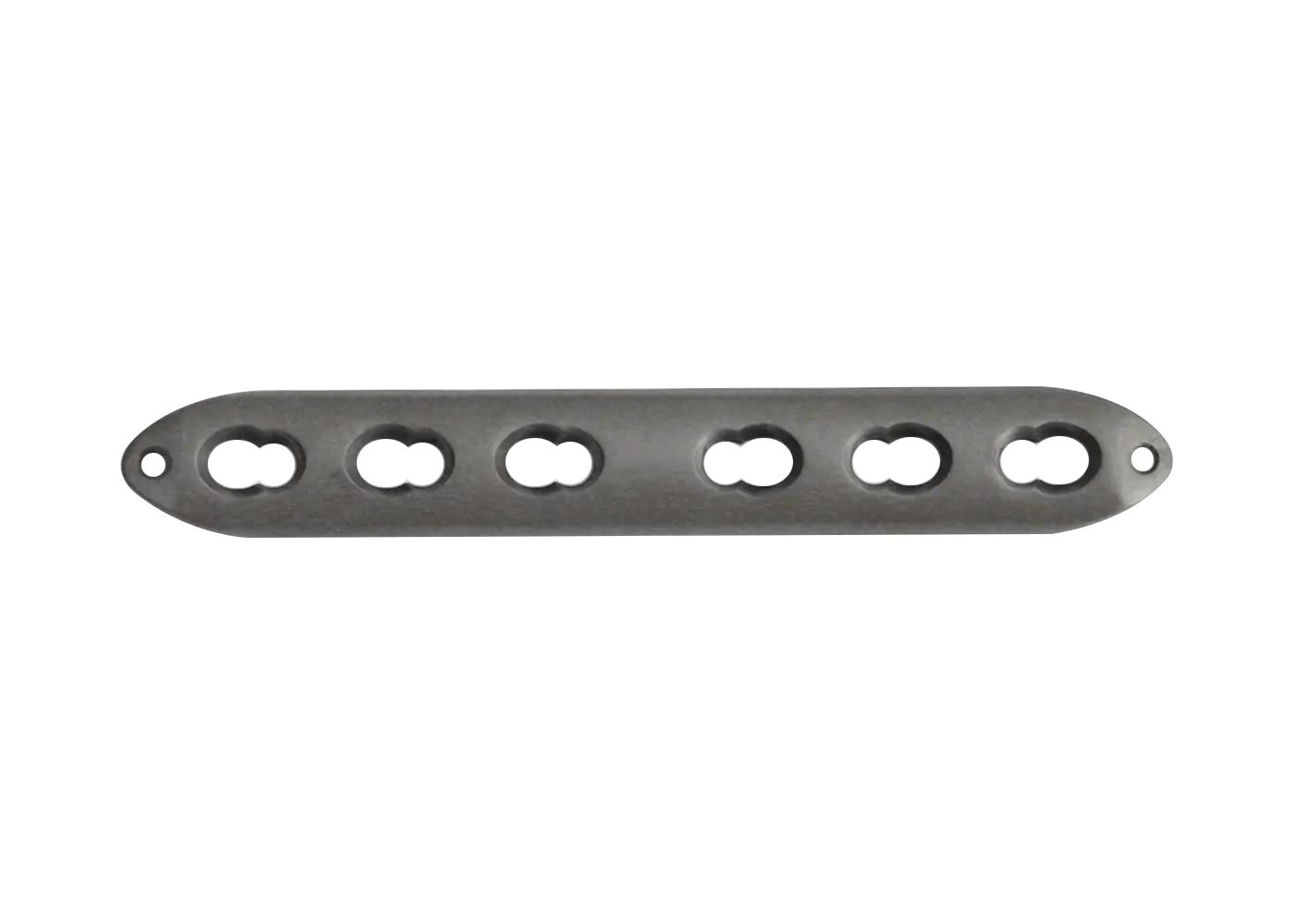

A dedicated titanium locking plate family for ulna and radius fixation projects.
View Ulna and Radius Locking Plate

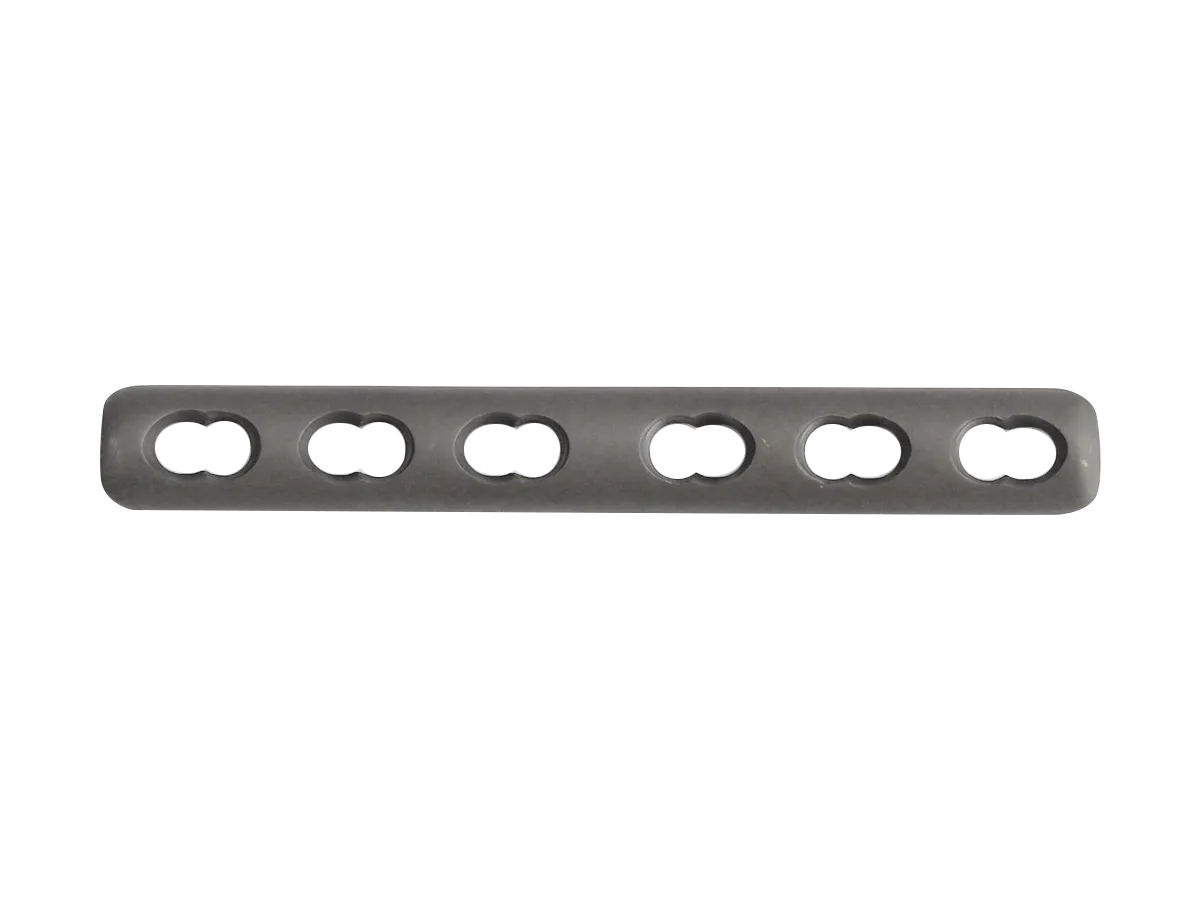

A compact titanium locking family for radius, ulna and other small-fragment fixation projects.
View One-Third Tubular Locking Plate

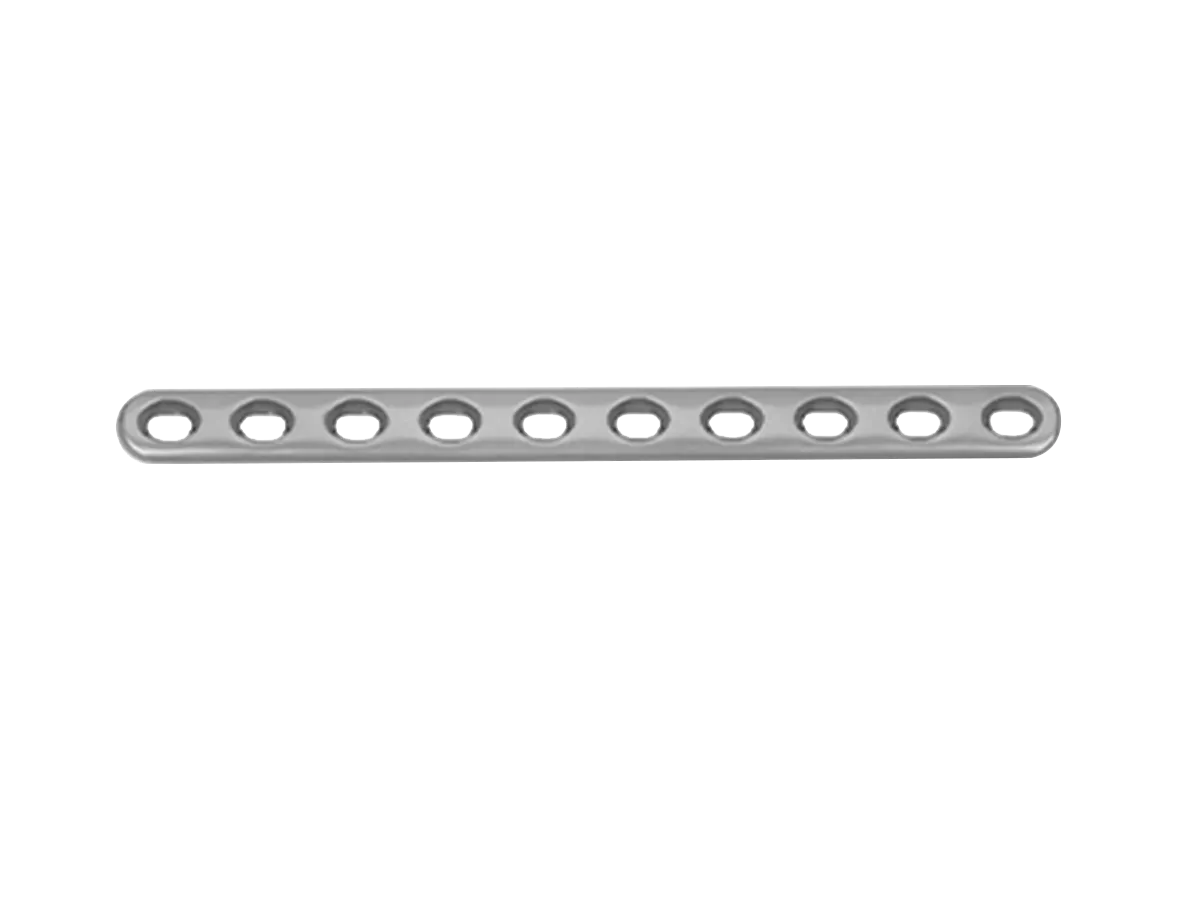

A titanium non-locking plate family for a conventional 3.5 mm forearm fixation pathway.
View LC-DCP Ulna and Radius Plate

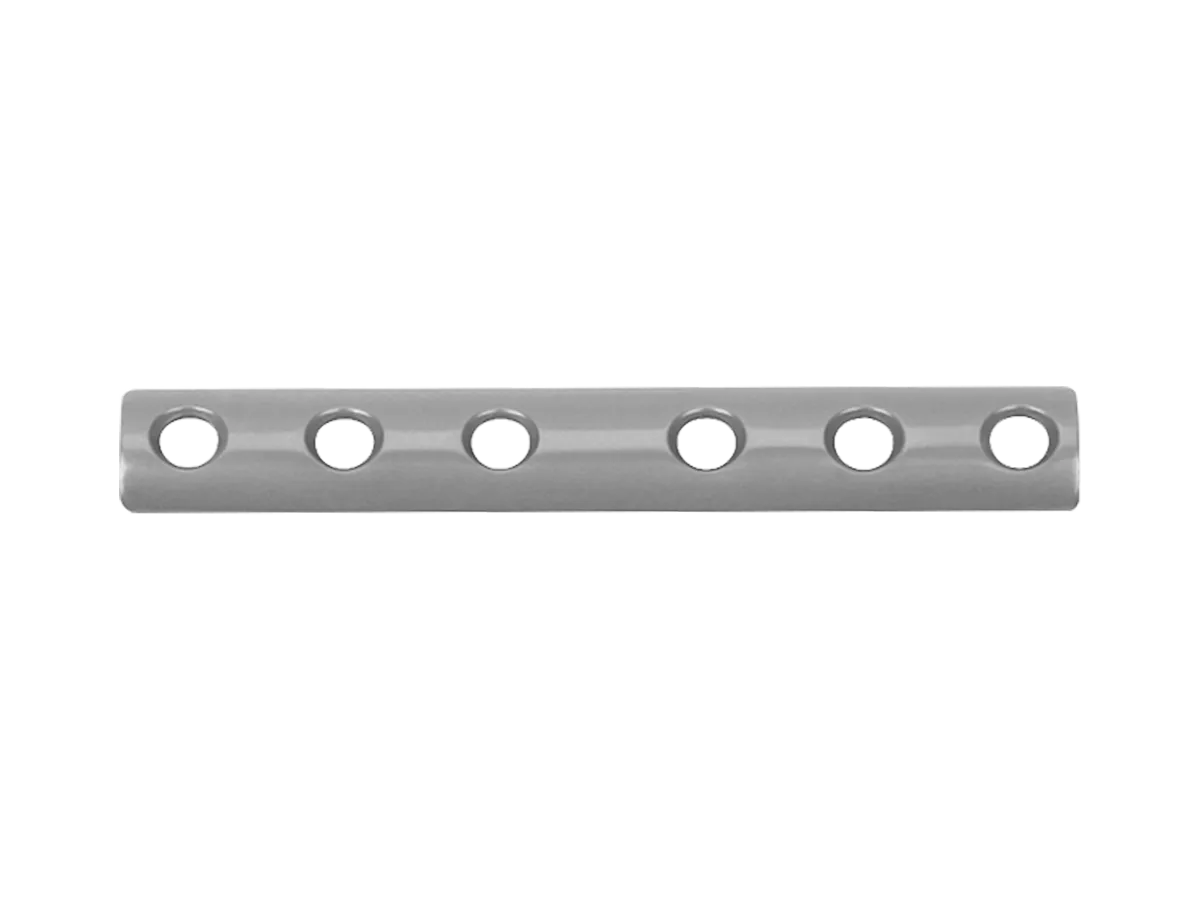

A concise titanium non-locking plate family matched with HA 3.5 cortical screws.
View One-third Tubular PlateSystem Configuration

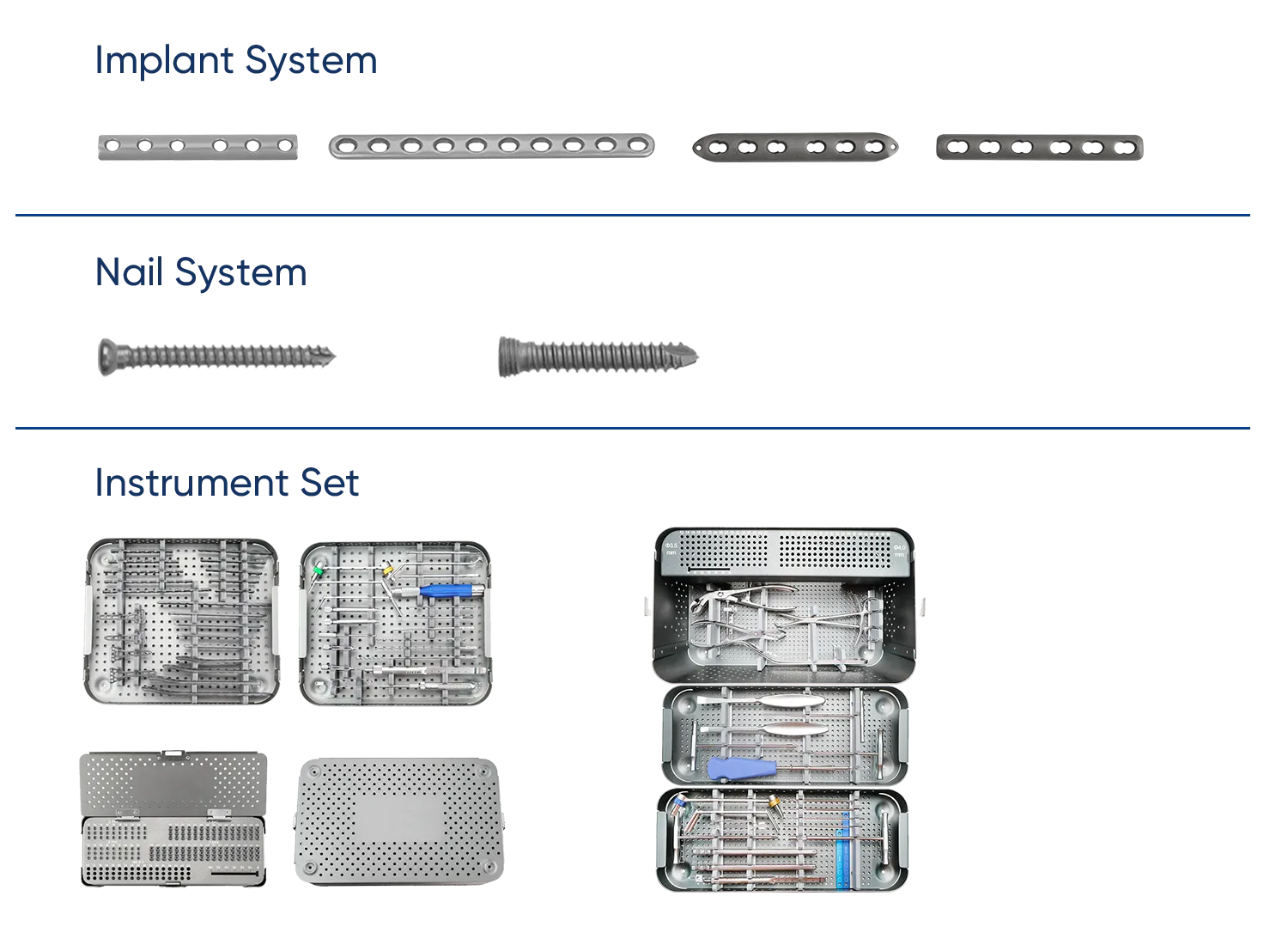

Build one project list around the selected locking or non-locking pathway.
Organize implant families, hole counts, screw ranges and instruments in one review-ready proposal. Each plate reference should be matched to its specified screw family before ordering.
Locking plates use HA 3.5 cortical and HC 3.5 locking screws. Non-locking plates use HA 3.5 cortical screws.

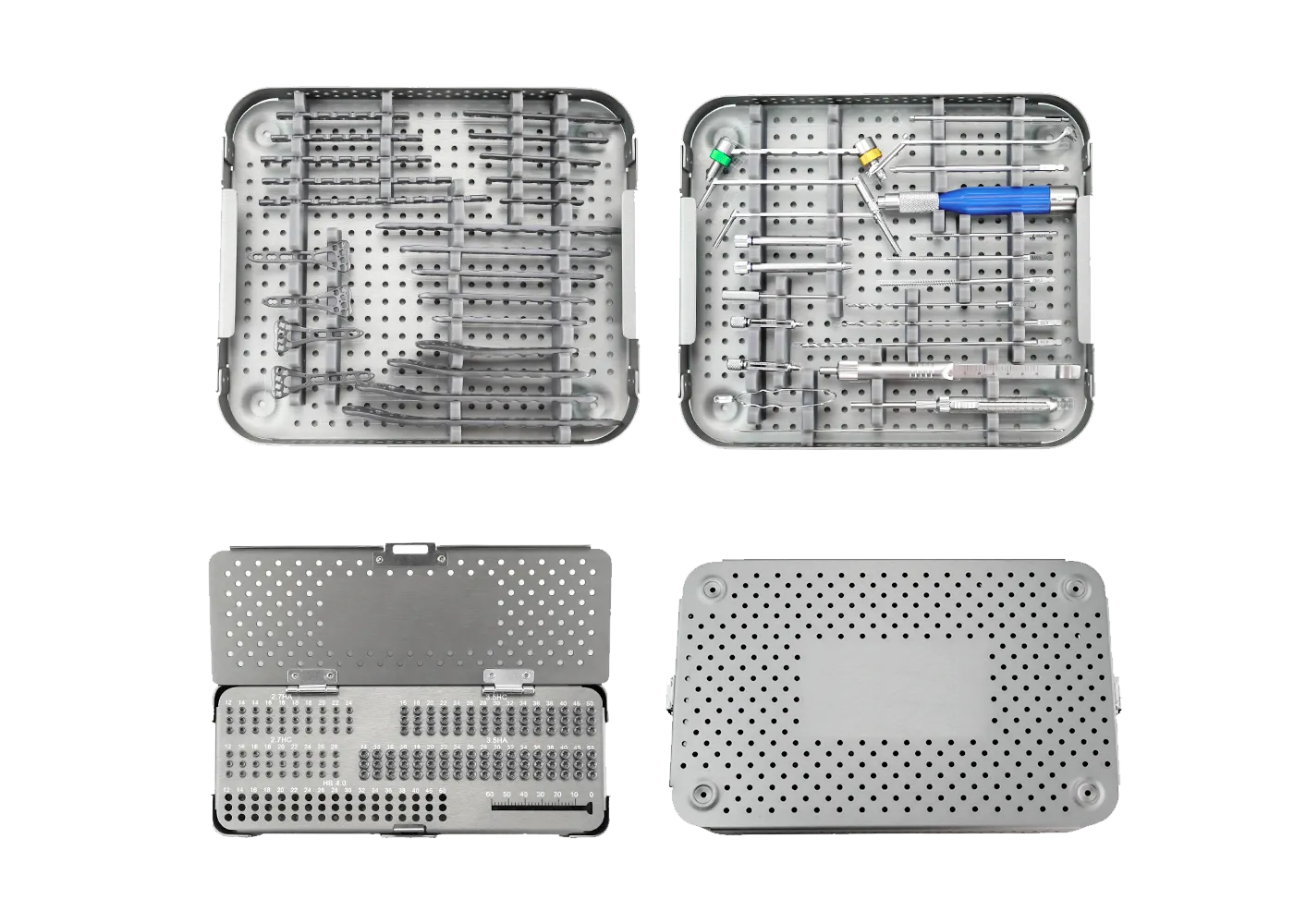

The 2.7/3.5 mm platform supports reduction, drilling, depth measurement, tapping and screw insertion.
View instrument set

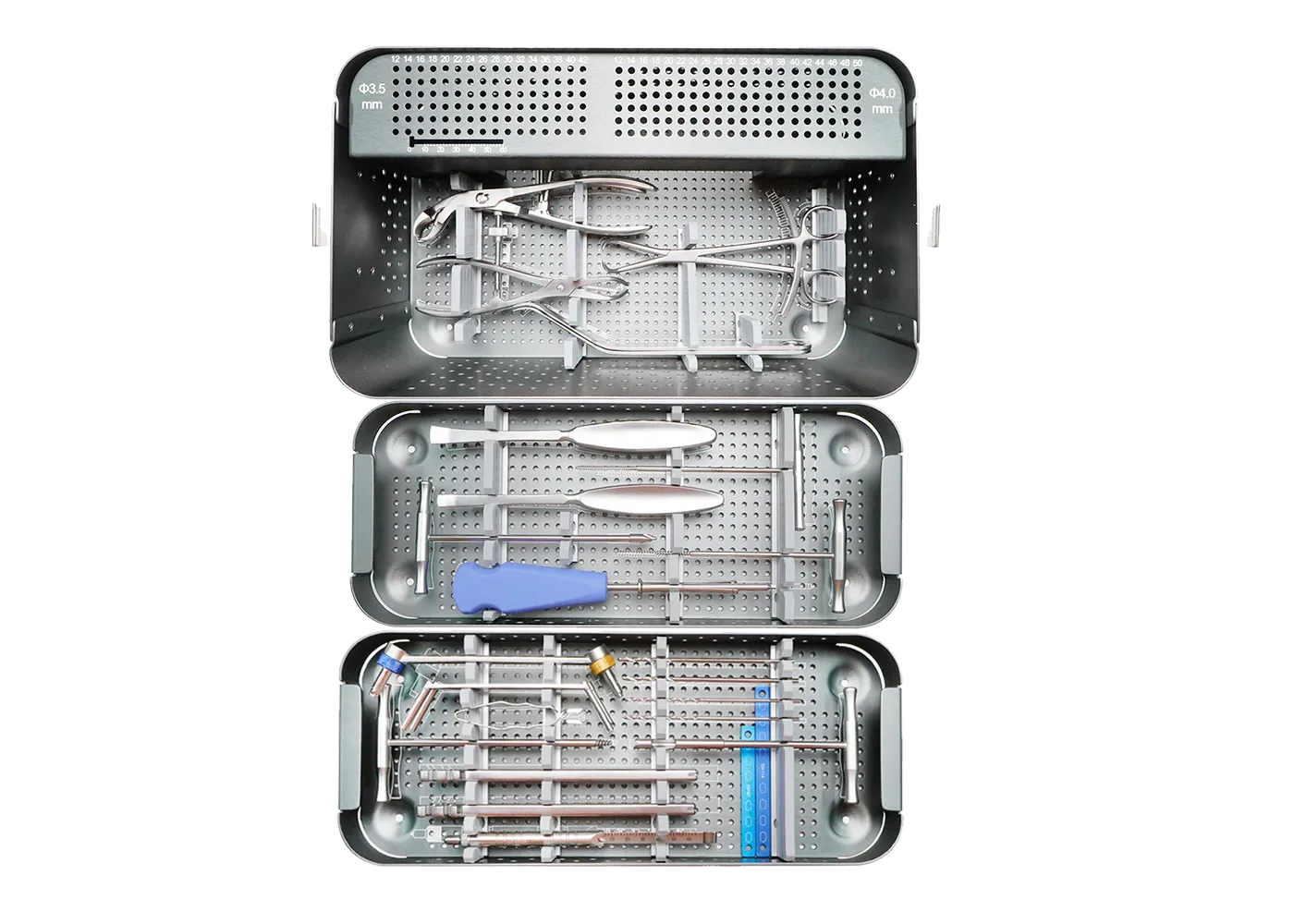

The small-fragment set supports the HA 3.5 non-locking plate workflow.
View instrument setShare the required plate family, hole counts, screw lengths, instrument configuration, quantity and destination market. XC Medico can consolidate the request for sample review, tender evaluation or routine supply.
Dedicated shaft plates, compatible 3.5 mm screws and small-fragment instruments keep system planning focused. Buyers comparing platforms can review the guide to locking and non-locking plates.
The Ulna and Radius Locking Plate provides a direct 6H-12H forearm option.
Locking and conventional non-locking paths can be quoted without mixing unrelated implant families.
Multiple hole counts support project-specific selection for each bone.
Small-fragment sets support key preparation and insertion tasks for both pathways.
System Matching

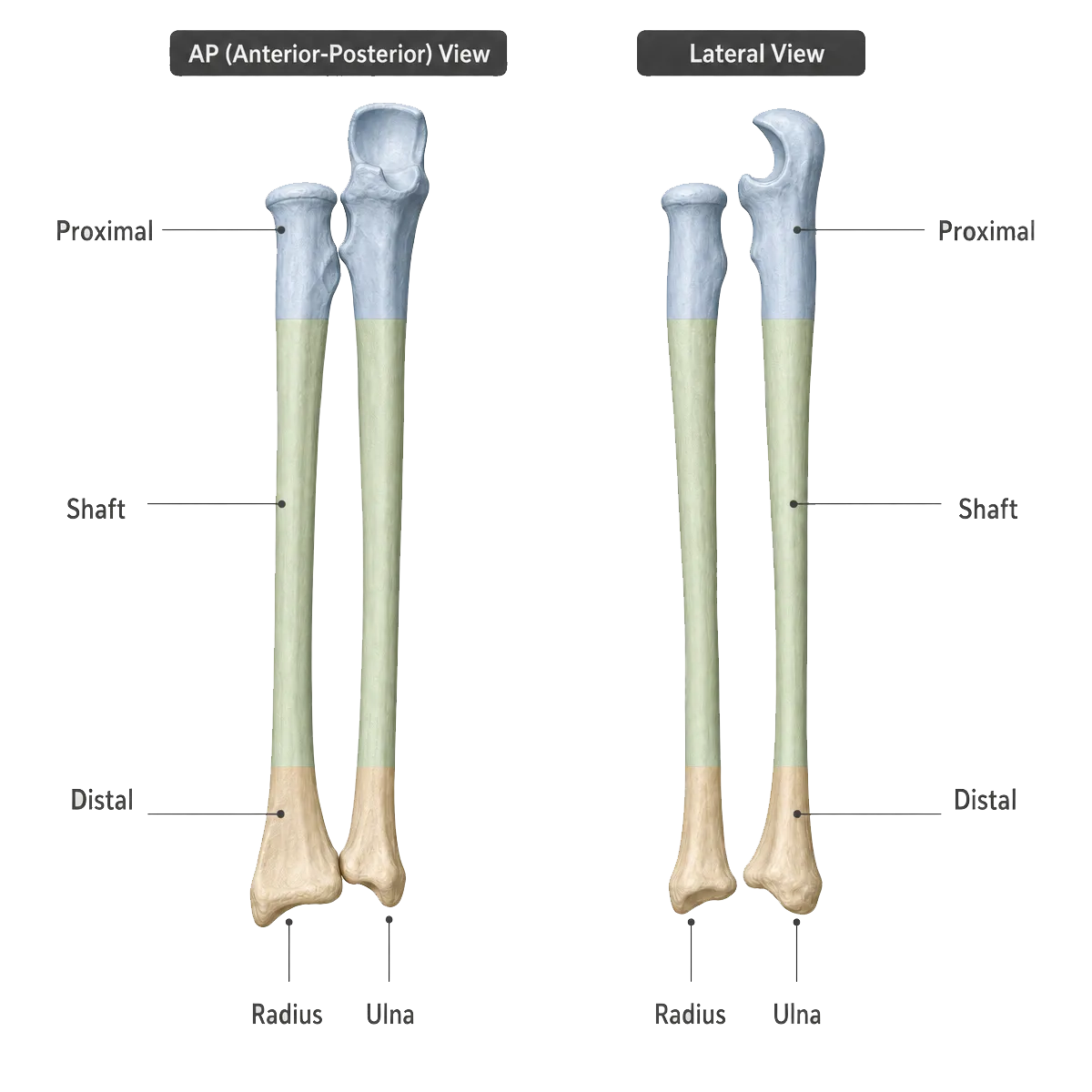

Identify radius, ulna or both bones and the shaft region involved.
Confirm locking, non-locking or both platform options for evaluation.
List the required hole counts separately for each plate.
Share screw lengths, set preference and any existing platform constraints.
Provide destination market and required documentation for review.
Include sample, tender, estimated quantity and delivery expectations.

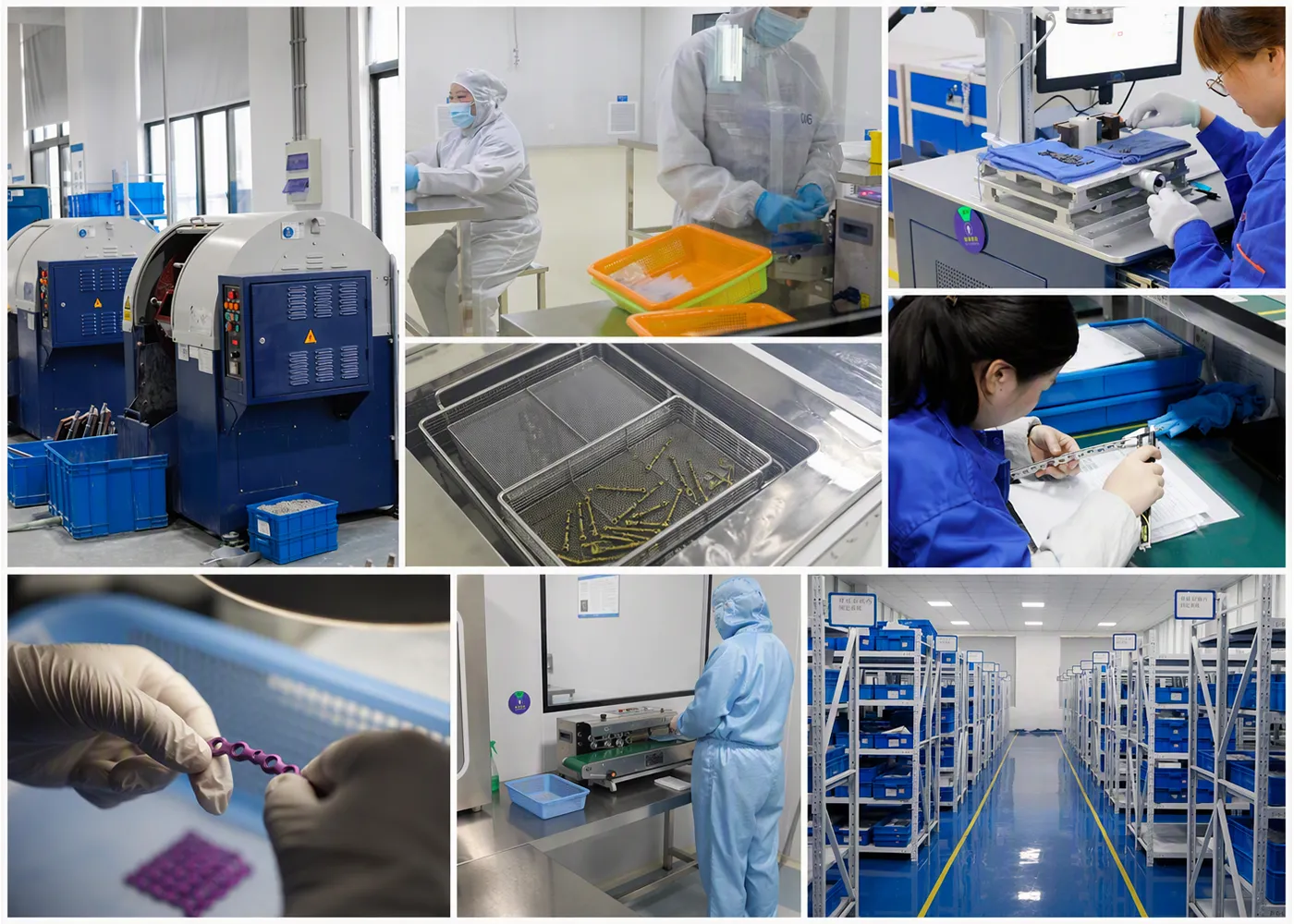

Connect forearm planning with XC Medico's orthopedic implant manufacturing, inspection and instrument assembly capabilities.
Explore XC Medico procedure-focused trauma systems by anatomy.
Explore solutionsReview the adjacent proximal ulna fixation system.
View procedure pageCompare the two plate concepts before defining a procurement path.

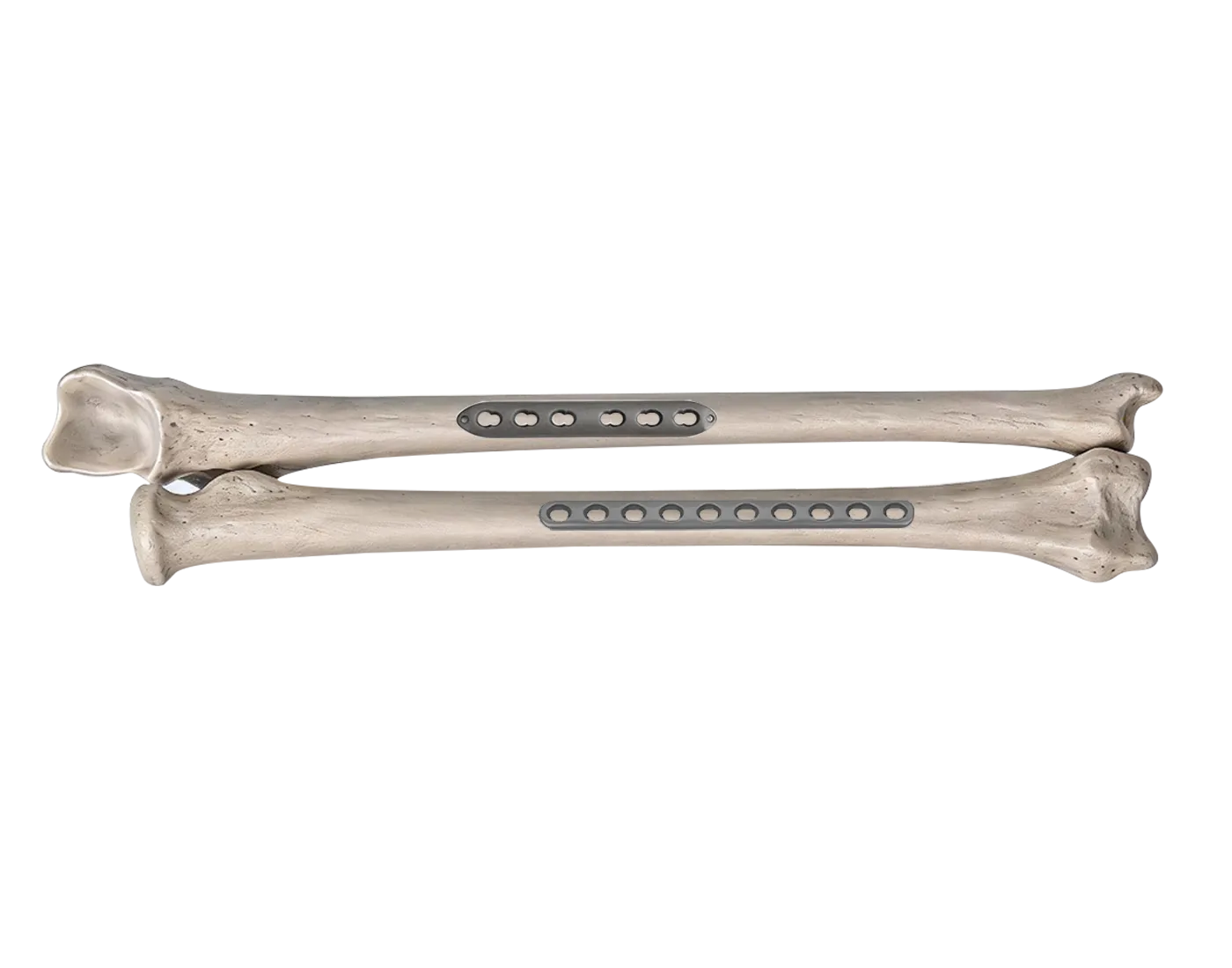

Read the guideThe locking pathway includes the Ulna and Radius Locking Plate and One-Third Tubular Locking Plate. The non-locking pathway includes the LC-DCP Ulna and Radius Plate and One-third Tubular Plate.
The locking plates support HA 3.5 cortical and HC 3.5 locking screws. The non-locking plates use HA 3.5 cortical screws and follow a conventional small-fragment instrument pathway.
The Ulna and Radius Locking Plate is available in 6H-12H, the locking tubular plate in 4H-12H, the LC-DCP plate in 5H-10H and the non-locking tubular plate in 4H-8H.
Use HA 3.5 cortical screws for all four plate families. Add HC 3.5 locking screws only when the selected locking plate configuration requires them. Confirm compatibility for each exact plate before ordering.
The 2.7/3.5 mm Small Surgery Instrument Set supports the locking platform. The Small Fragment Instrument Set supports the non-locking plate pathway.
Provide the involved bone, plate family, hole counts, screw lengths, instrument needs, destination market, quantity and any sample or tender documentation requirements.
Send the selected plate families, hole counts, screw ranges, instrument needs, destination market and estimated quantity.
