XC Medico Trauma Solutions

Pelvic Ring Fracture Fixation Solution

Titanium plate options, matched screw platforms and reconstruction instruments for pelvic ring fixation projects.

Explore Plate Options Request System Matching

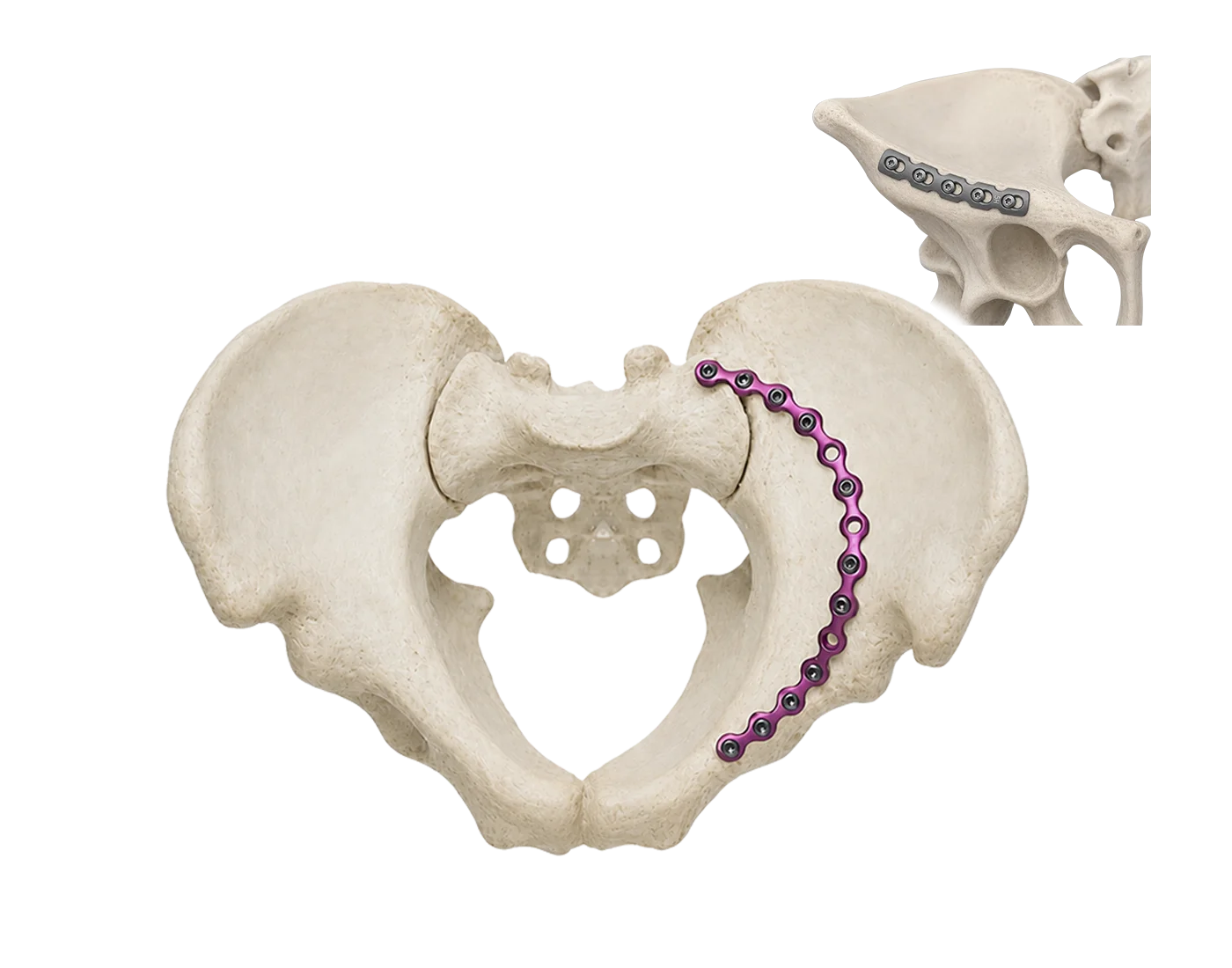

Pelvic ring anatomy with pelvic and reconstruction locking plate options

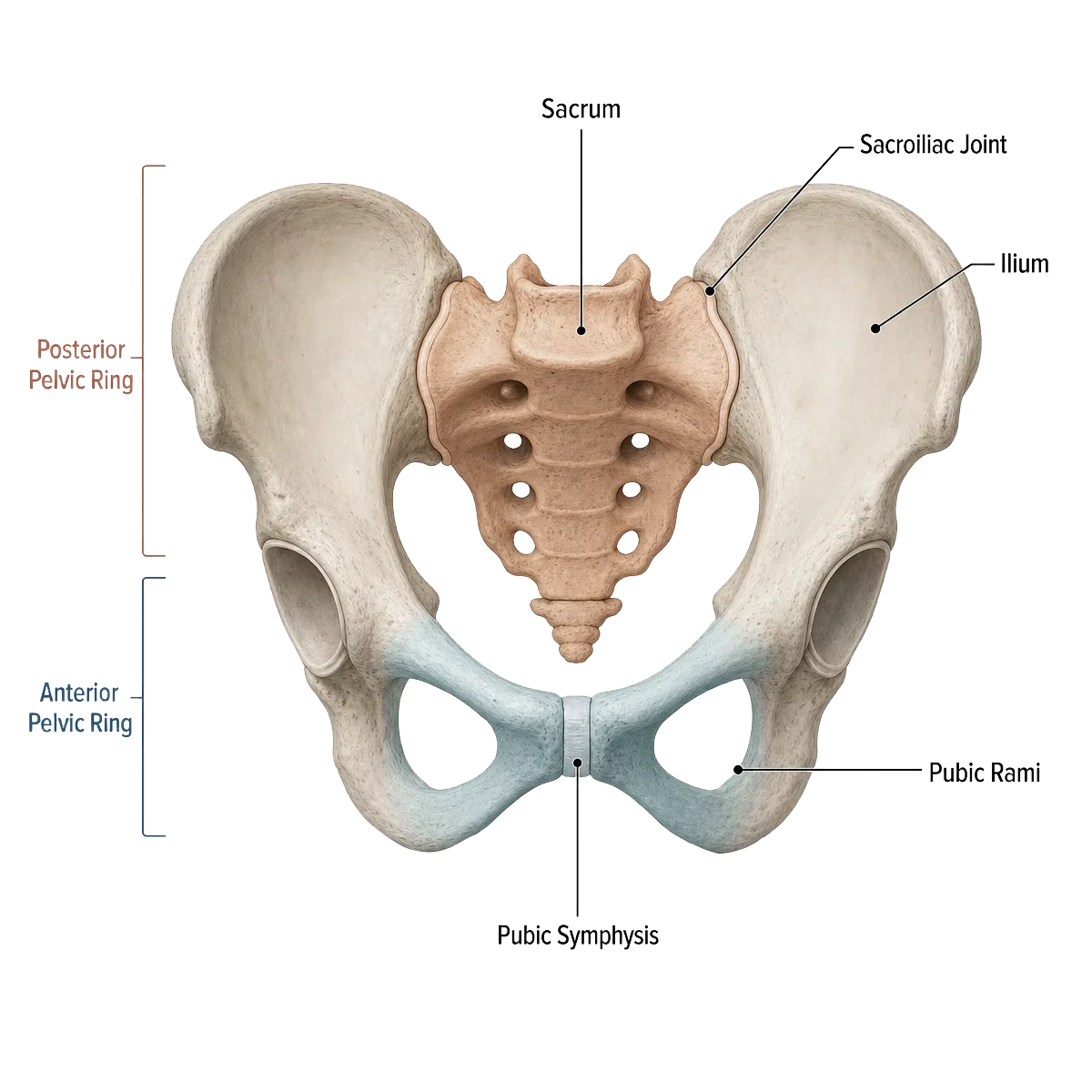

Anterior and posterior pelvic ring anatomy

Plan for the Whole Ring

Pelvic ring planning considers both anterior and posterior injuries. This portfolio supports plate-based configurations selected by the clinical team.

Two Plate Platforms

Compare a dedicated Pelvic Plate with a Reconstruction Locking Plate for the planned fixation requirement.

Separate Screw Families

Keep the HB 4.0 pathway distinct from the HA 3.5 and HC 3.5 pathway.

Coordinated Instrumentation

Combine pelvic reduction tools with the guides and drivers required by the chosen implant.

Define the Fixation Region

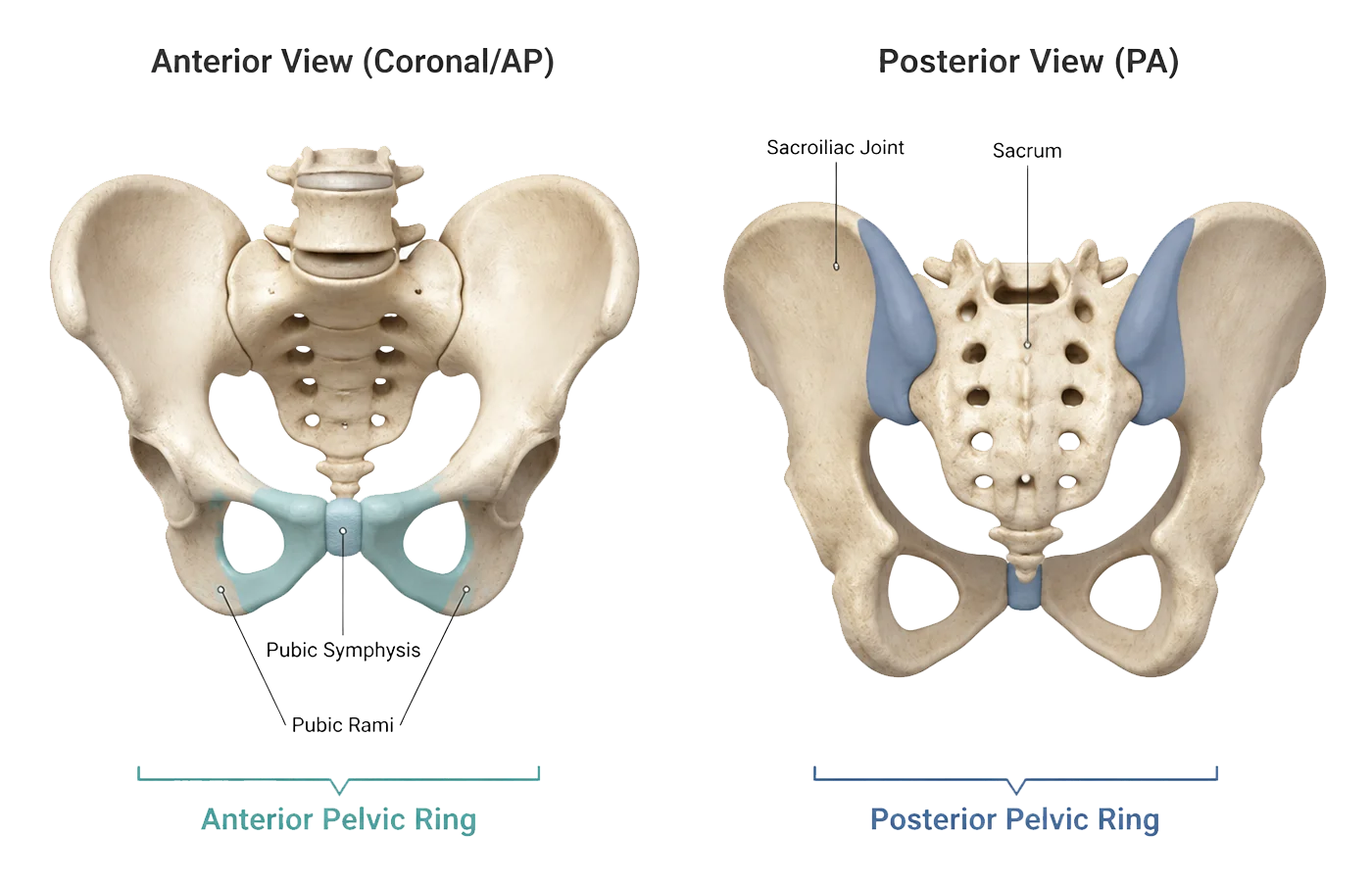

Pelvic ring anterior and posterior planning views

Anterior Ring

Clarify the symphyseal or pubic ramus region, planned plate coverage and the required screw configuration.

Posterior Ring

Associated posterior injuries need a separate clinical assessment. An anterior plate configuration alone does not define the complete fixation plan.

Pelvic Plate Options

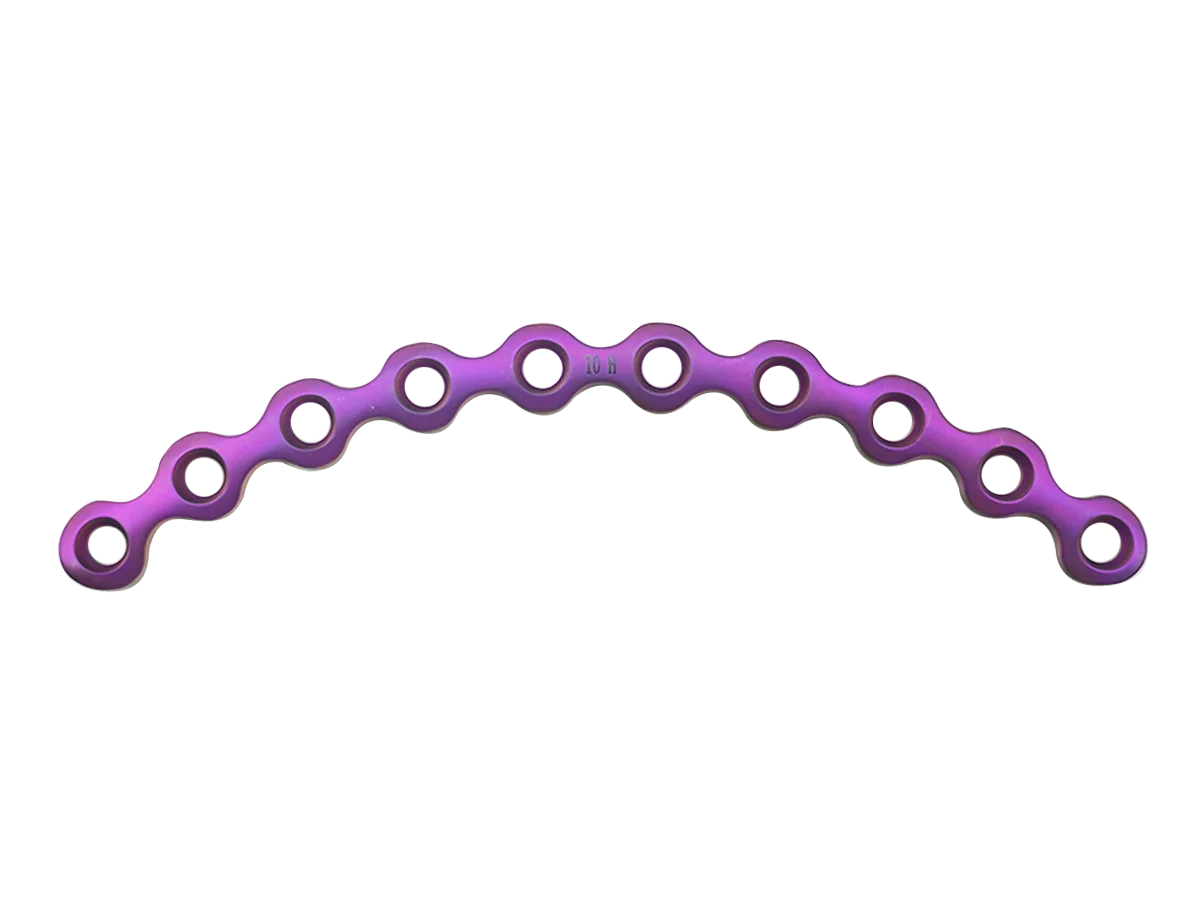

Titanium Pelvic Plate in five hole-count options

Pelvic Plate

A titanium non-locking plate family for pelvic fixation planning.

Available Holes
4 / 6 / 8 / 10 / 12
Screw Platform
HB 4.0
View Pelvic Plate

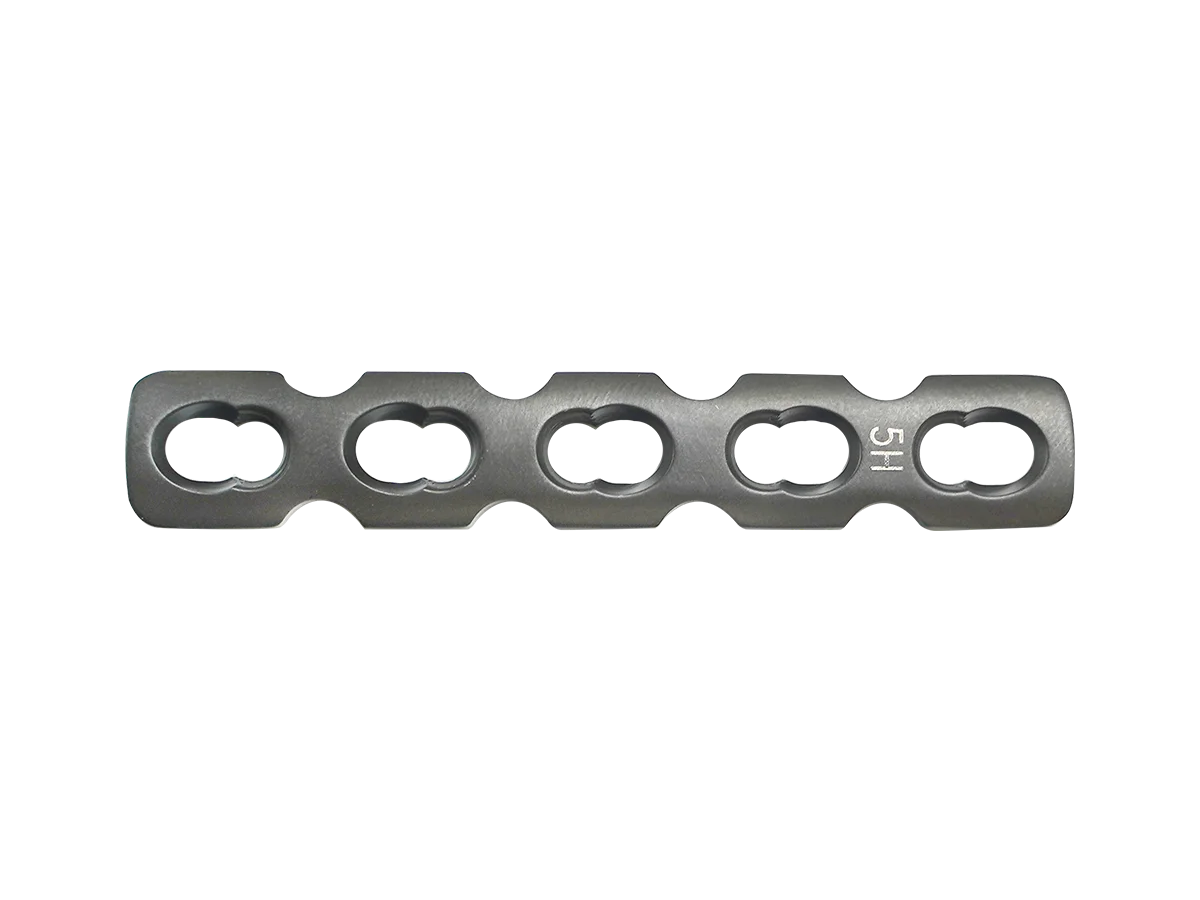

Titanium Reconstruction Locking Plate in seven hole-count options

Reconstruction Locking Plate

A titanium reconstruction family with locking and cortical screw options for selected pelvic applications.

Available Holes
5 / 6 / 7 / 8 / 9 / 10 / 12
Screw Platforms
HA 3.5 / HC 3.5
View Reconstruction Locking Plate

Match the Complete Configuration

HB 4.0

Pelvic Plate Pathway

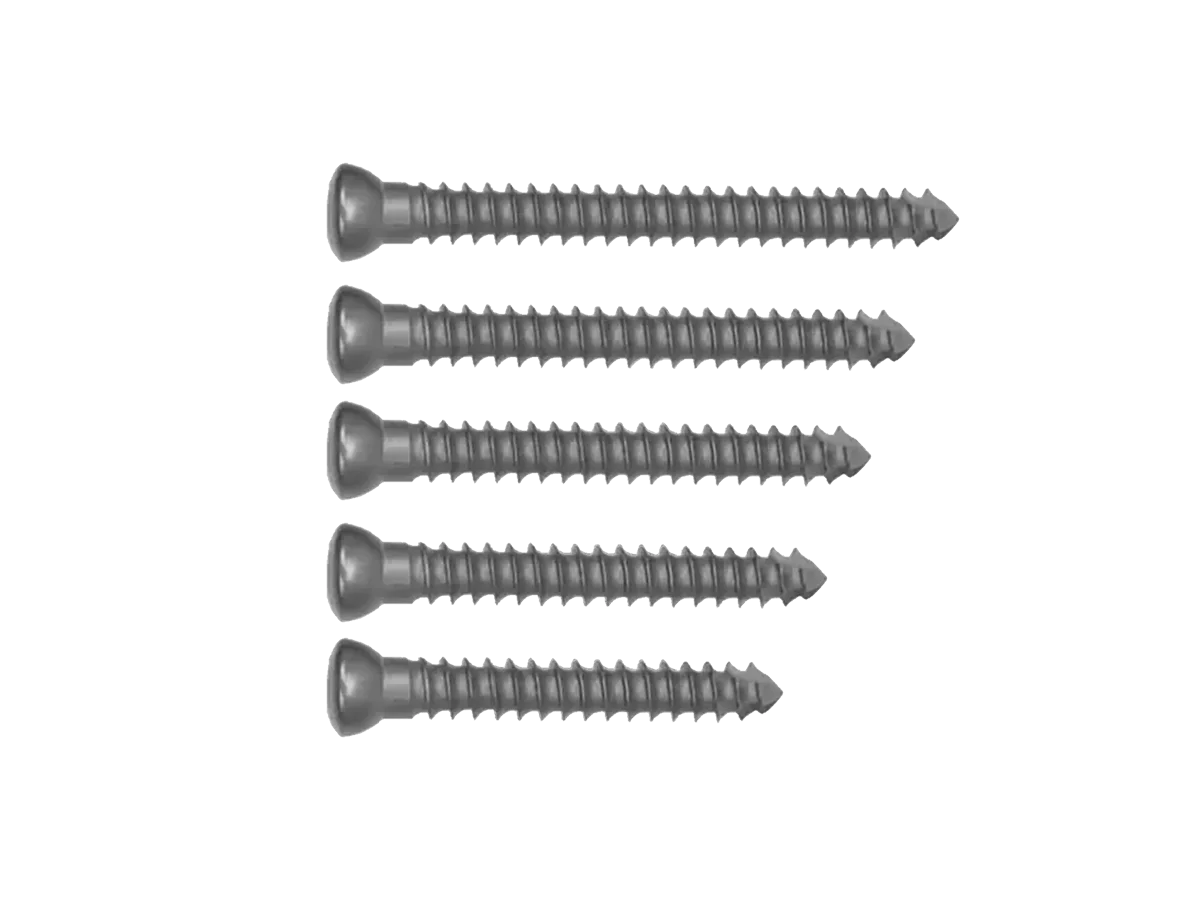

Pelvic Plate, selected cancellous screws and pelvic reconstruction instruments.

3.5 mm

Locking Plate Pathway

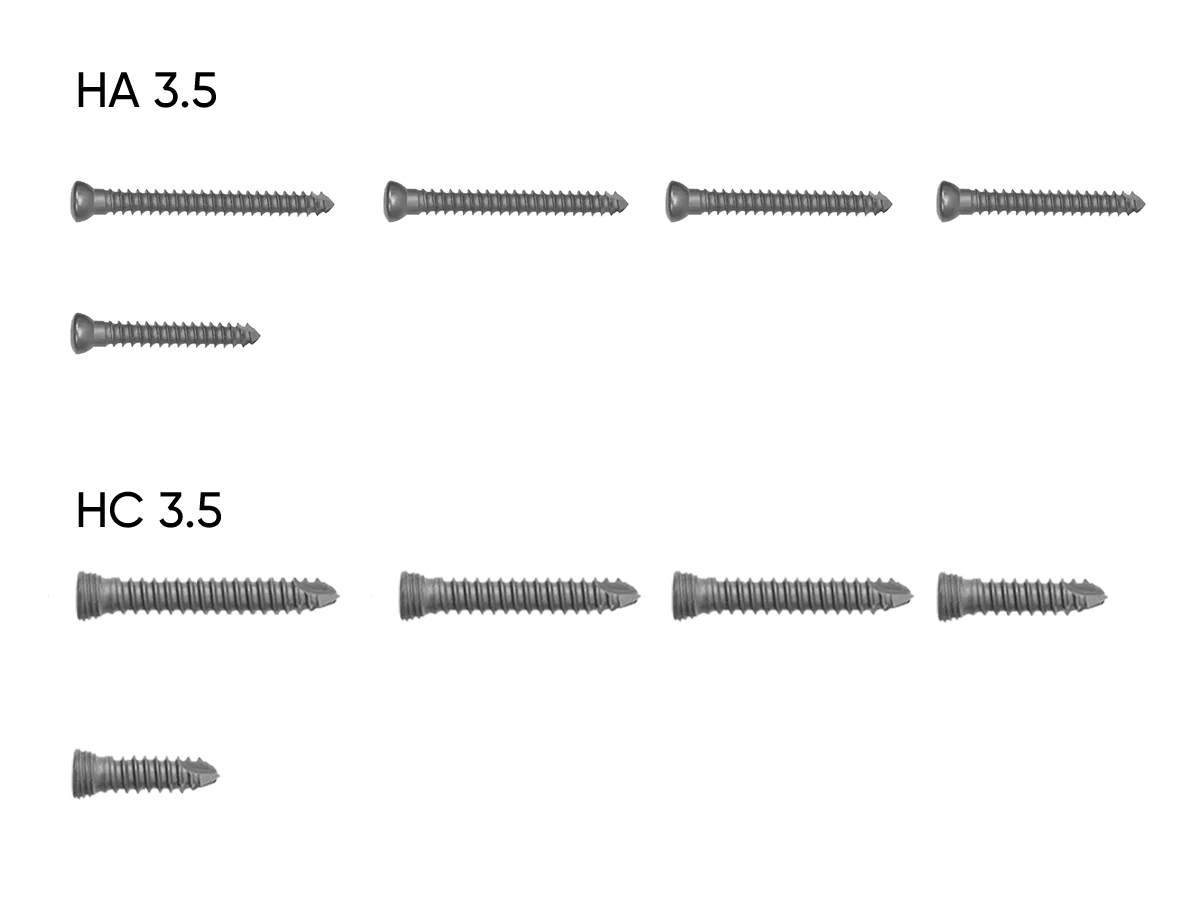

Reconstruction Locking Plate, HA / HC screws and the corresponding small-fragment guides and drivers.

Pelvic Reconstruction Instruments

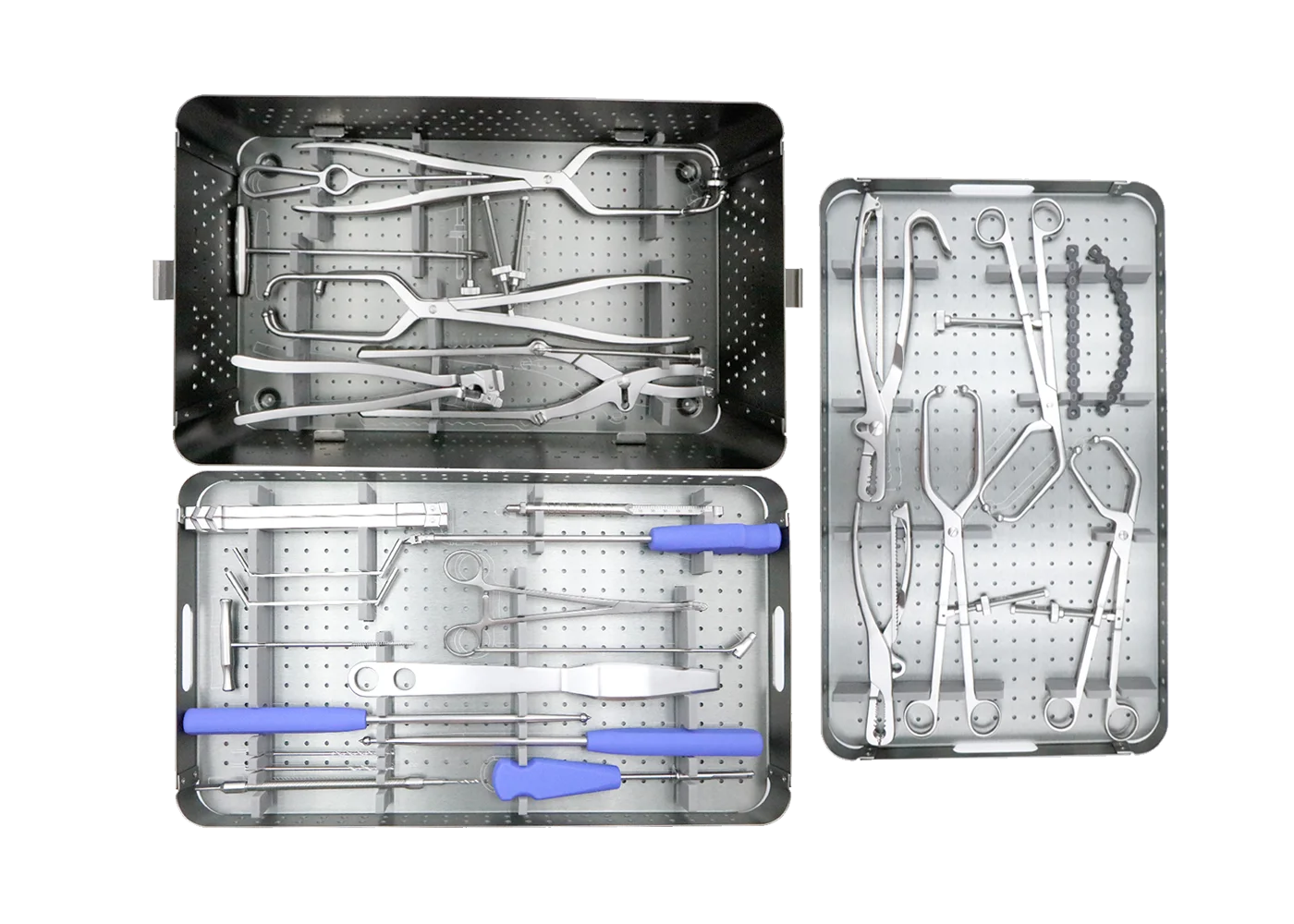

Pelvic Reconstruction Plate Instrument Set with reduction and plate-contouring tools

Pelvic Reconstruction Plate Instrument Set

Pelvic-specific reduction, plate contouring and screw preparation tools organized in one instrument platform.

Reduction Ball spikes, bone hooks and pelvic reduction forceps.
Plate Preparation Pelvic mould plate, reconstruction mould plate and bending tools.
Drilling & Measurement Drill guides, drill bits and a 0-60 mm depth gauge.
Screw Insertion SW2.5 drivers, screw holder and 4.0 mm tap.
View pelvic reconstruction instrument set

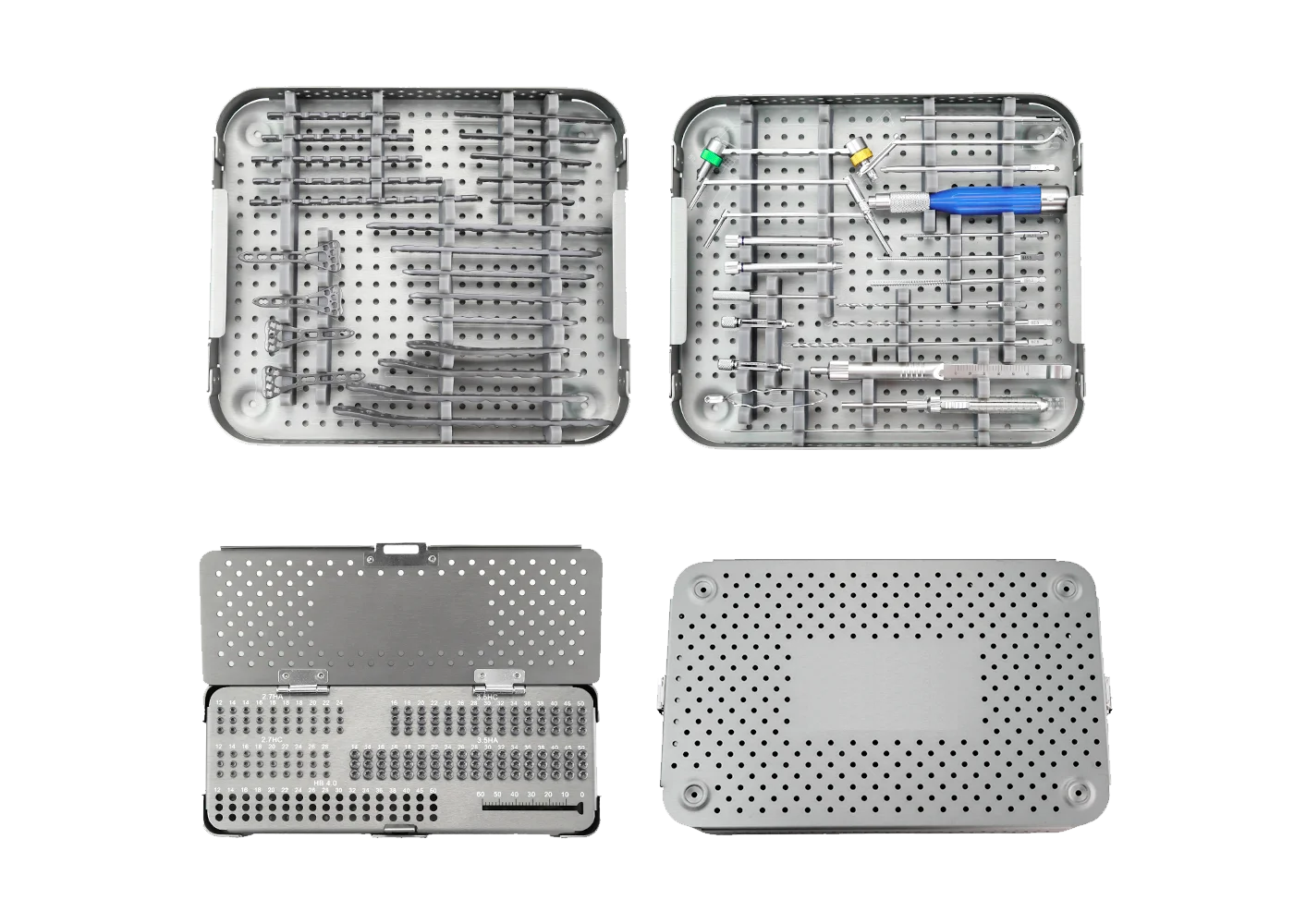

Small Surgery Instrument Set 2.7 and 3.5 mm without implants

Small Surgery Instrument Set

The 2.7/3.5 mm platform provides drill sleeves, depth gauges, taps and drivers for small-fragment configurations.

Select the exact guides and drivers around the reconstruction plate and screw interface. Implants are supplied separately for the No Implant set.

View small-fragment instrument set

Fixation Planning Overview

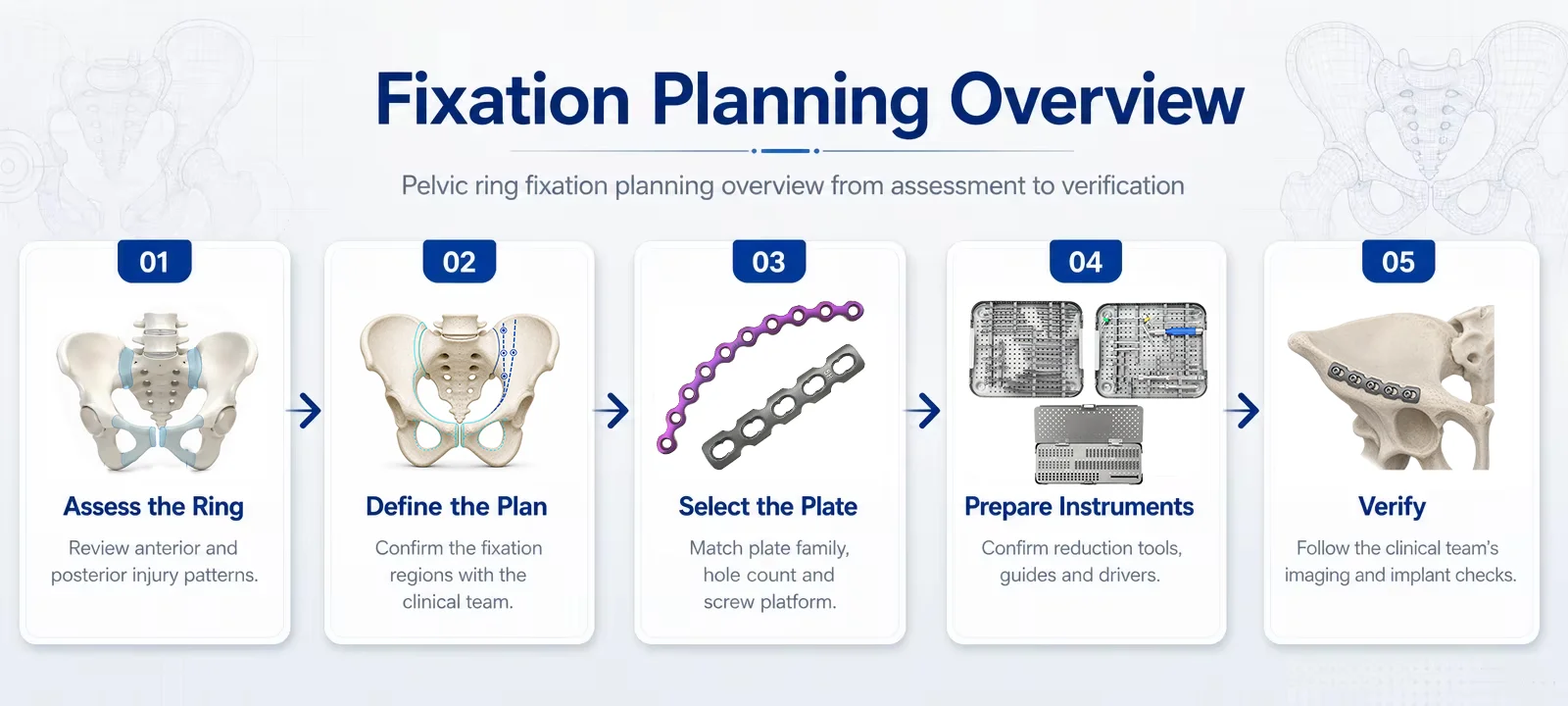

Pelvic ring fixation planning overview from assessment to verification
  1. Assess the RingReview anterior and posterior injury patterns.
  2. Define the PlanConfirm the fixation regions with the clinical team.
  3. Select the PlateMatch plate family, hole count and screw platform.
  4. Prepare InstrumentsConfirm reduction tools, guides and drivers.
  5. VerifyFollow the clinical team's imaging and implant checks.

System Selection Guide

Fixation Scope

Identify the pelvic ring region and whether separate posterior fixation is part of the plan.

Plate Coverage

Confirm the plate family and required hole counts before setting quantities.

Screw Interface

Keep HB 4.0 and HA / HC 3.5 configurations separate. Confirm lengths and matching tools.

Supply Scope

Specify implant quantities, instrument sets, packaging and destination-market documentation.

Manufacturing & Project Support

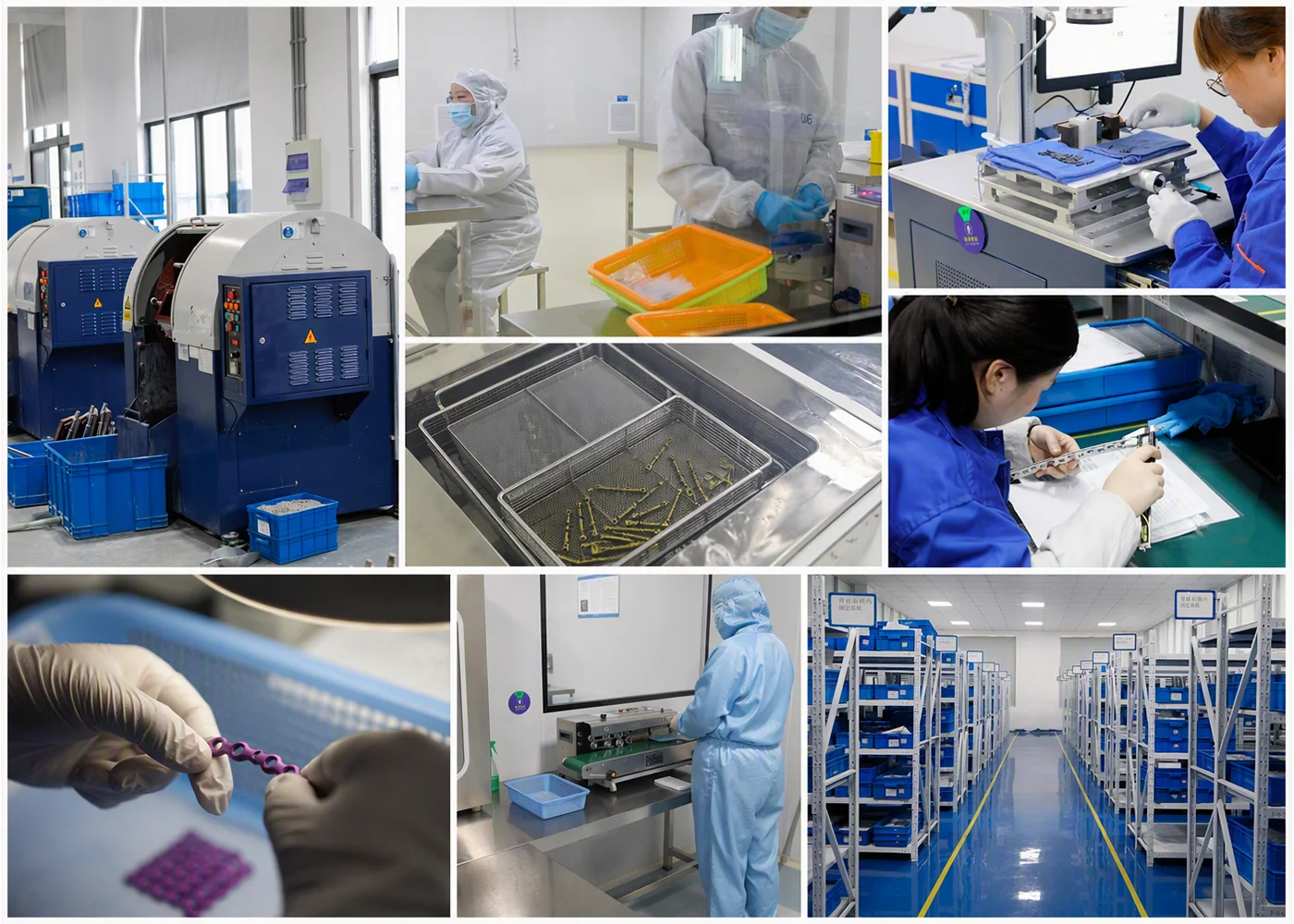

XC Medico implant machining inspection and instrument assembly

Implants & Instruments

Coordinate plate quantities, screw ranges and instrument requirements in one project brief.

Pelvic Ring Fixation FAQ

How do the two plate options differ?

Pelvic Plate is a non-locking titanium family with 4, 6, 8, 10 and 12-hole options using HB 4.0 screws. Reconstruction Locking Plate offers 5, 6, 7, 8, 9, 10 and 12 holes using HA 3.5 and HC 3.5 screws. The clinical plan determines the appropriate option.

Does this configuration cover every pelvic ring injury?

No. The page presents plate-based product options. Posterior ring injury may require a separate fixation strategy; the clinical team must assess the complete pelvic ring before system selection.

Can the screw families be mixed between plates?

Do not substitute across platforms. Pelvic Plate specifies HB 4.0, while Reconstruction Locking Plate specifies HA 3.5 and HC 3.5. Confirm the exact screw reference, length and driver interface for the selected plate.

Will one instrument set support both pathways?

The pelvic set supplies pelvic reduction and plate-preparation tools. A locking configuration also needs the guides and drivers matched to its screw interface. Confirm the instrument list for the selected pathway before ordering.

Are acetabular plates included in this range?

Posterior wall and column-specific plates address a different product selection. Keep acetabular requirements separate when requesting a pelvic ring configuration.

What should I send for a quotation?

Send the plate families and hole counts, screw types and lengths, quantities, instrument needs and destination market. Include packaging or private-label requirements where relevant.

Explore Other Trauma Solutions

Browse fixation portfolios by anatomical region.

Trauma & fracture fixation solutions

Build Your Pelvic Fixation Configuration

Share your plate selection, screw ranges, instrument needs and quantities for a coordinated product-matching proposal.

Request System Matching

For professional system planning. Clinical selection and device use must follow patient assessment and the approved instructions for use.
