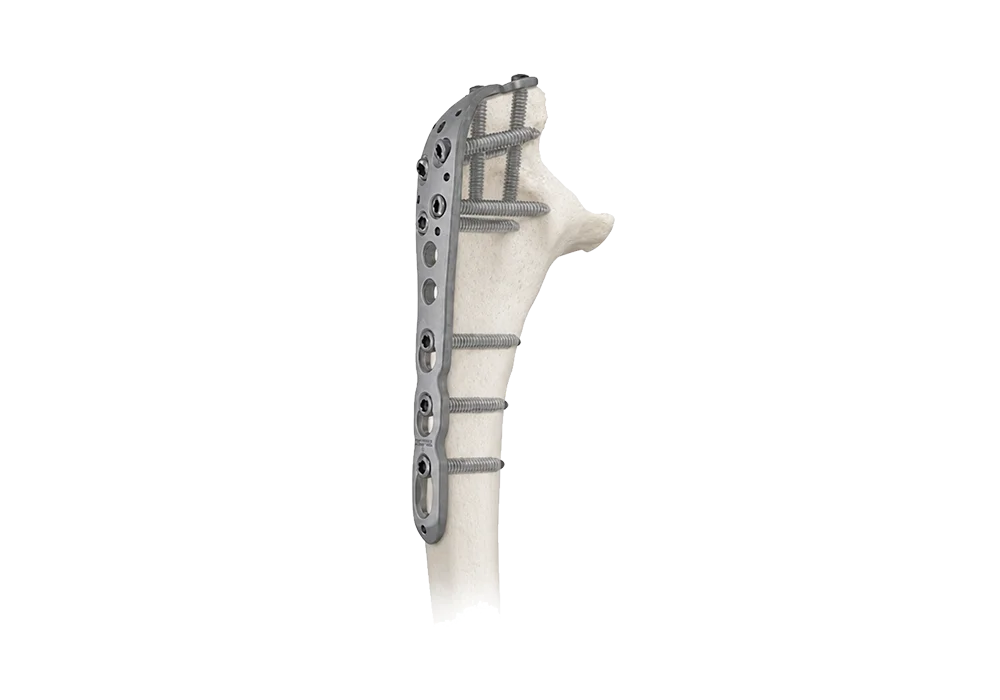

01
Locking Plate
An anatomic left/right platform with HA 3.5 cortical and HC 3.5 locking screw options.
Procedure Overview
Proximal Ulna Fixation
XC Medico combines an anatomic locking plate with standard and reconstruction plate options for olecranon and proximal ulna projects. Each implant family is paired with its specified screw platform and a compatible small-fragment instrument set.
Use the radius and ulna implant portfolio to compare adjacent upper-limb systems. The guide to locking and non-locking plates provides additional context for portfolio planning.
Plate Families 3 systems
Hole Range 3H to 12H
Screw Platforms HA 3.5 / HC 3.5 / HB 4.0
Material Titanium
System Architecture
Fixation Paths

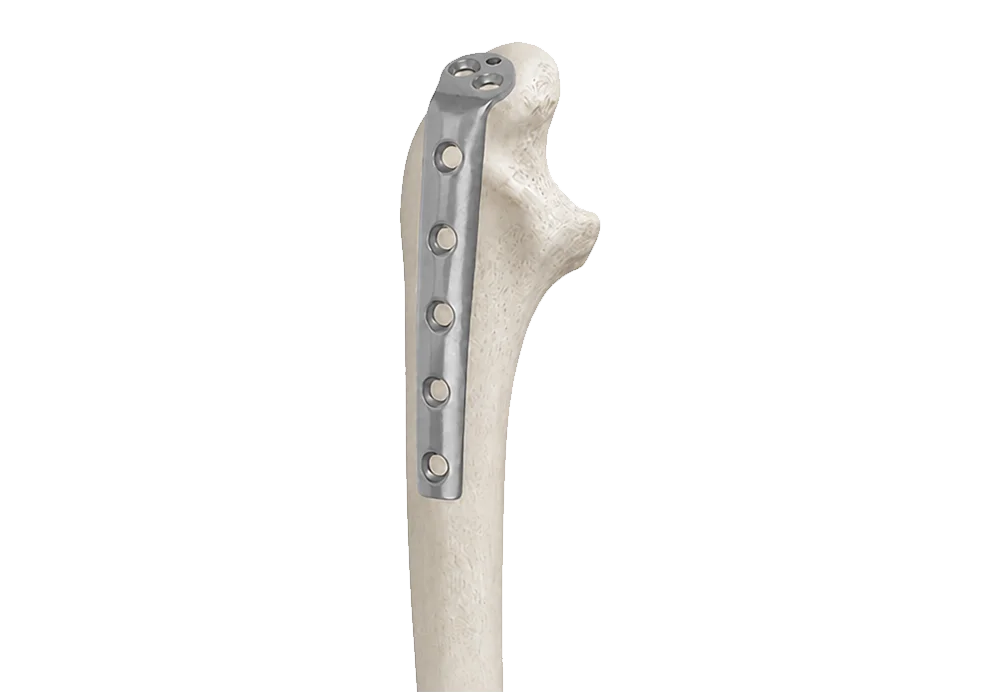

02
Standard Plate
A compact non-locking option using HA 3.5 cortical and HB 4.0 cancellous screws.

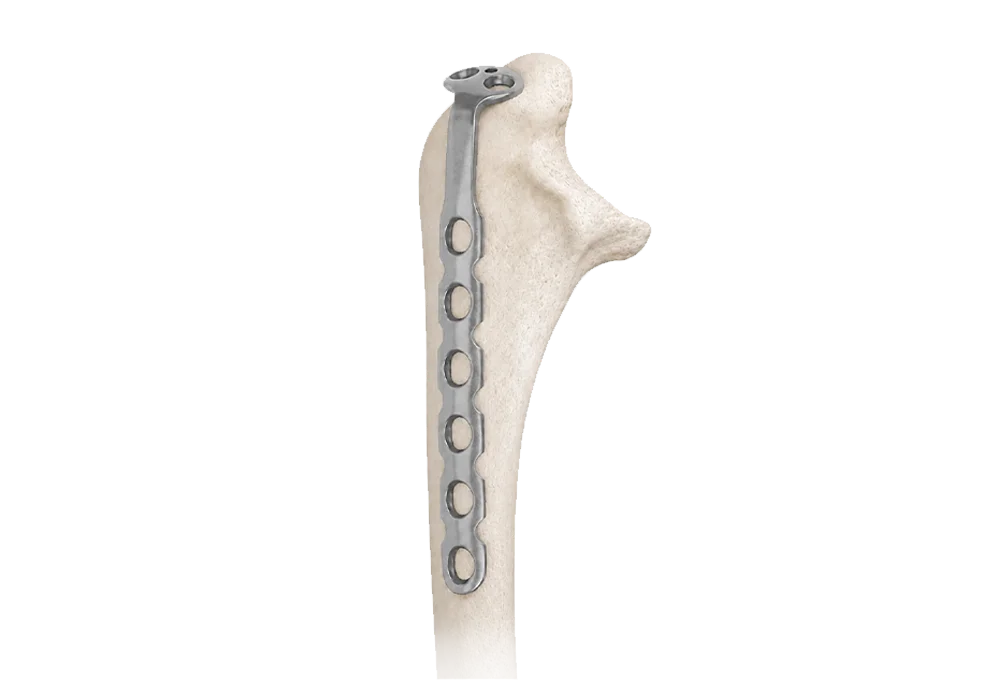

03
Reconstruction Plate
A left/right non-locking plate family for projects requiring a reconstruction-style profile.
Implant Portfolio
Implant Systems
Locking Plate System

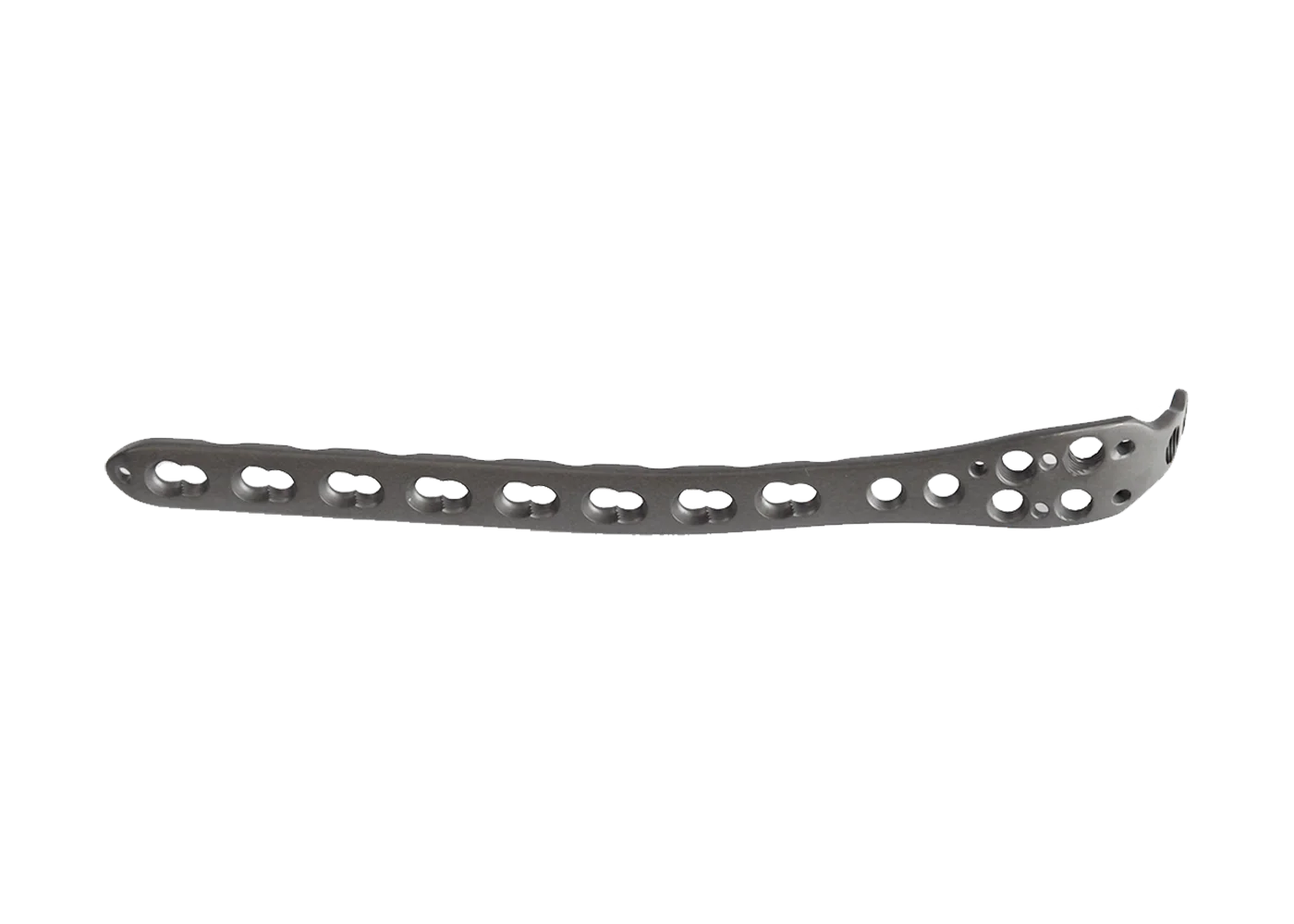

Ulna Olecranon Locking Plate
An anatomic locking platform designed for proximal ulna fixation, with six plate lengths for left and right anatomy.
- REFRPCGYZS3HR/HL-RPCGYZS12HR/HL
- Options3H, 4H, 6H, 8H, 10H and 12H
- ScrewsHA 3.5 cortical / HC 3.5 locking
Non-Locking Plate Systems

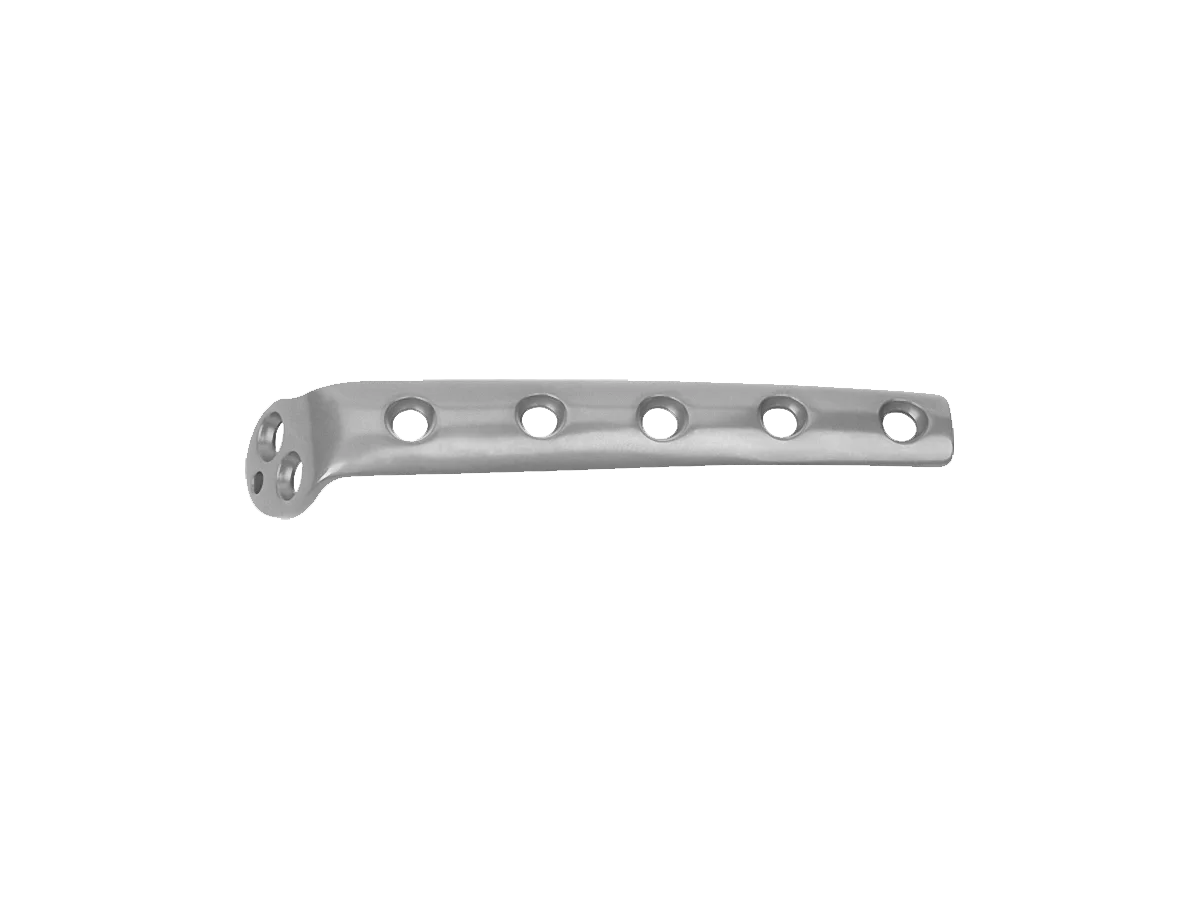

Olecranon Plate
- REFRPRYF3H-RPRYF6H
- Options3H, 4H, 5H and 6H
- ScrewsHA 3.5 / HB 4.0

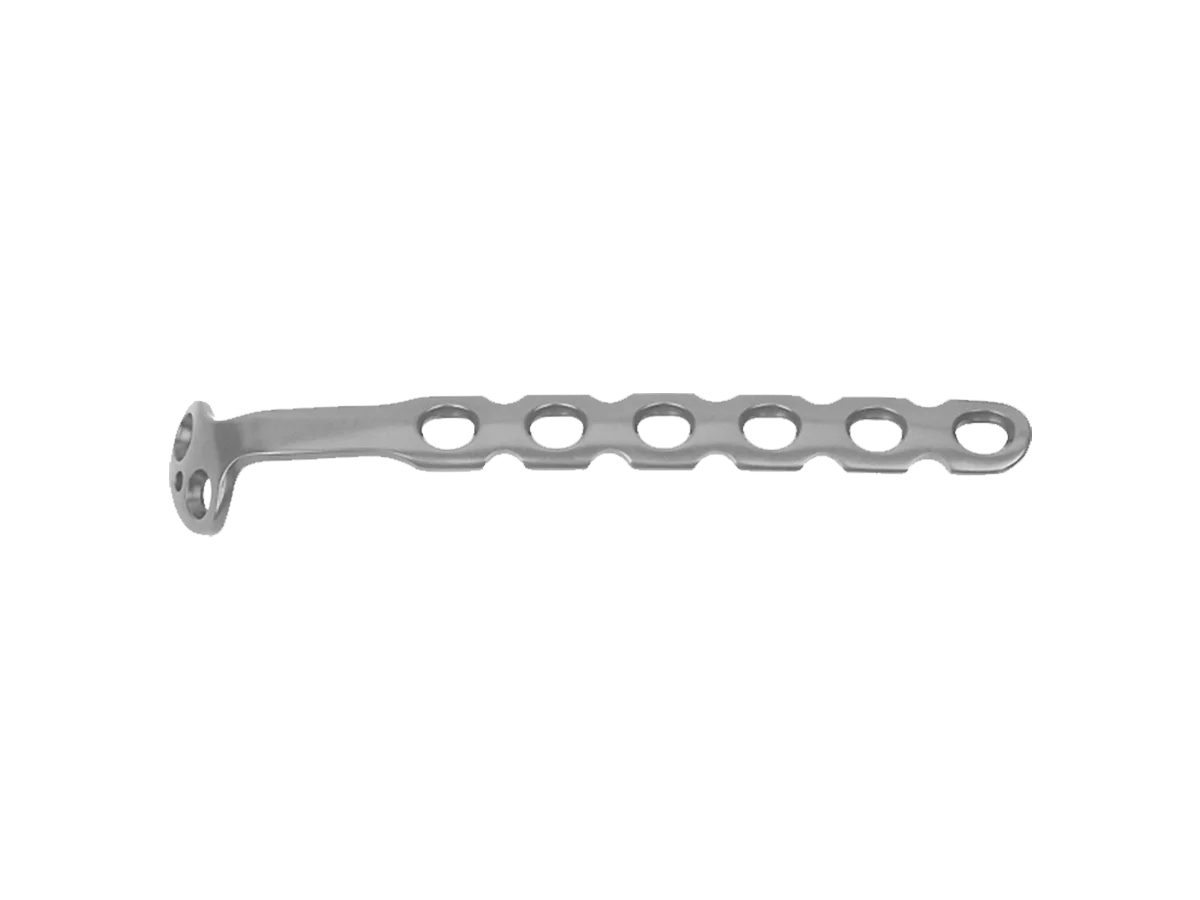

Olecranon Reconstruction Plate
- REFRPCYCJ3HL/HR-RPCYCJ6HL/HR
- Options3H, 4H, 5H and 6H
- ScrewsHA 3.5 / HB 4.0
Portfolio Matrix
System Configuration

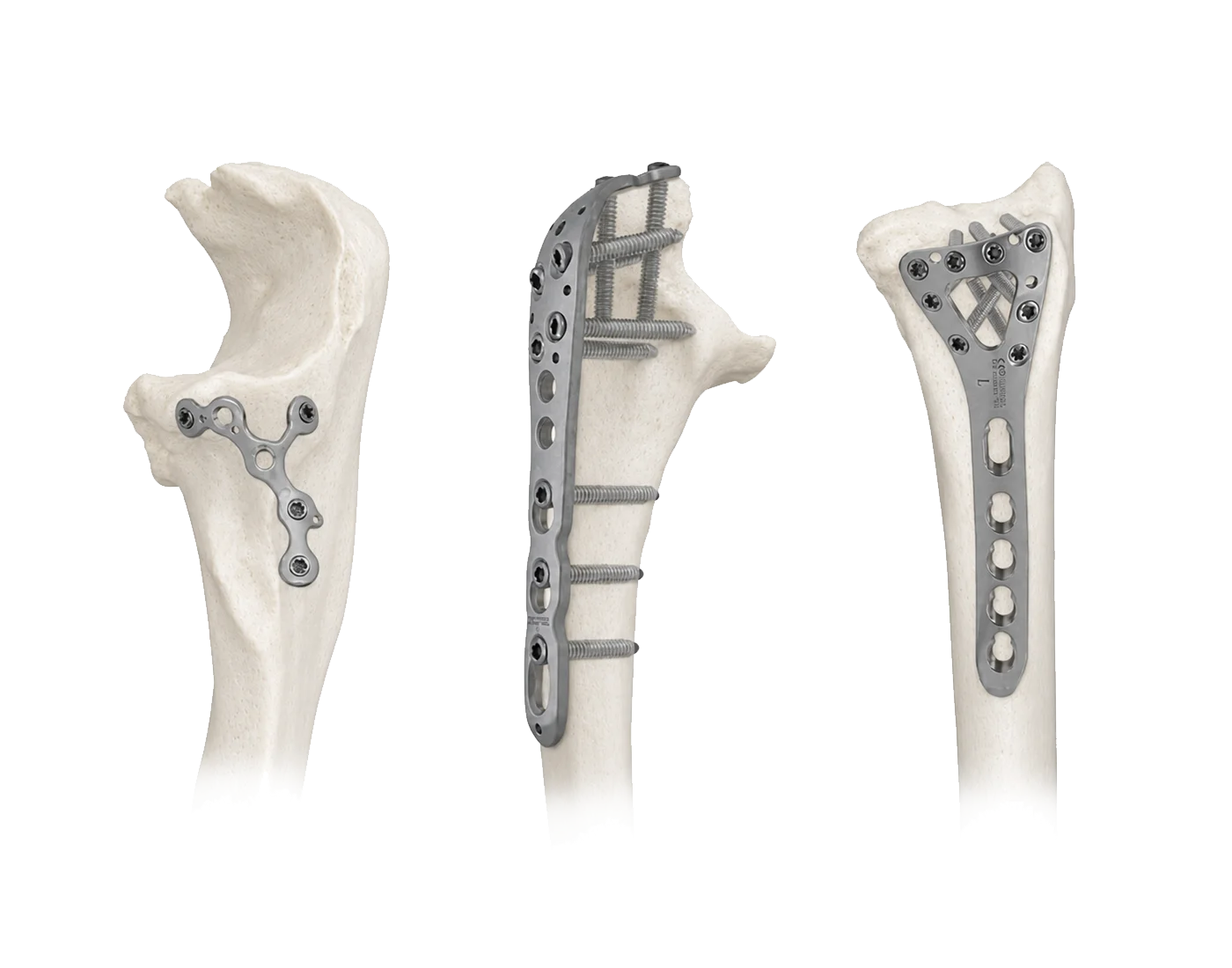

| Implant Family | Type | Size Range | Side | Screw Platform |
|---|---|---|---|---|
| Ulna Olecranon Locking Plate | Locking | 3H, 4H, 6H, 8H, 10H, 12H | L / R | HA 3.5 / HC 3.5 |
| Olecranon Plate | Non-locking | 3H-6H | L / R | HA 3.5 / HB 4.0 |
| Olecranon Reconstruction Plate | Non-locking | 3H-6H | L / R | HA 3.5 / HB 4.0 |
Supporting Components
Screws & Instruments
Compatible Screw Platforms
Coordinate every plate reference with its specified locking, cortical or cancellous screw family.

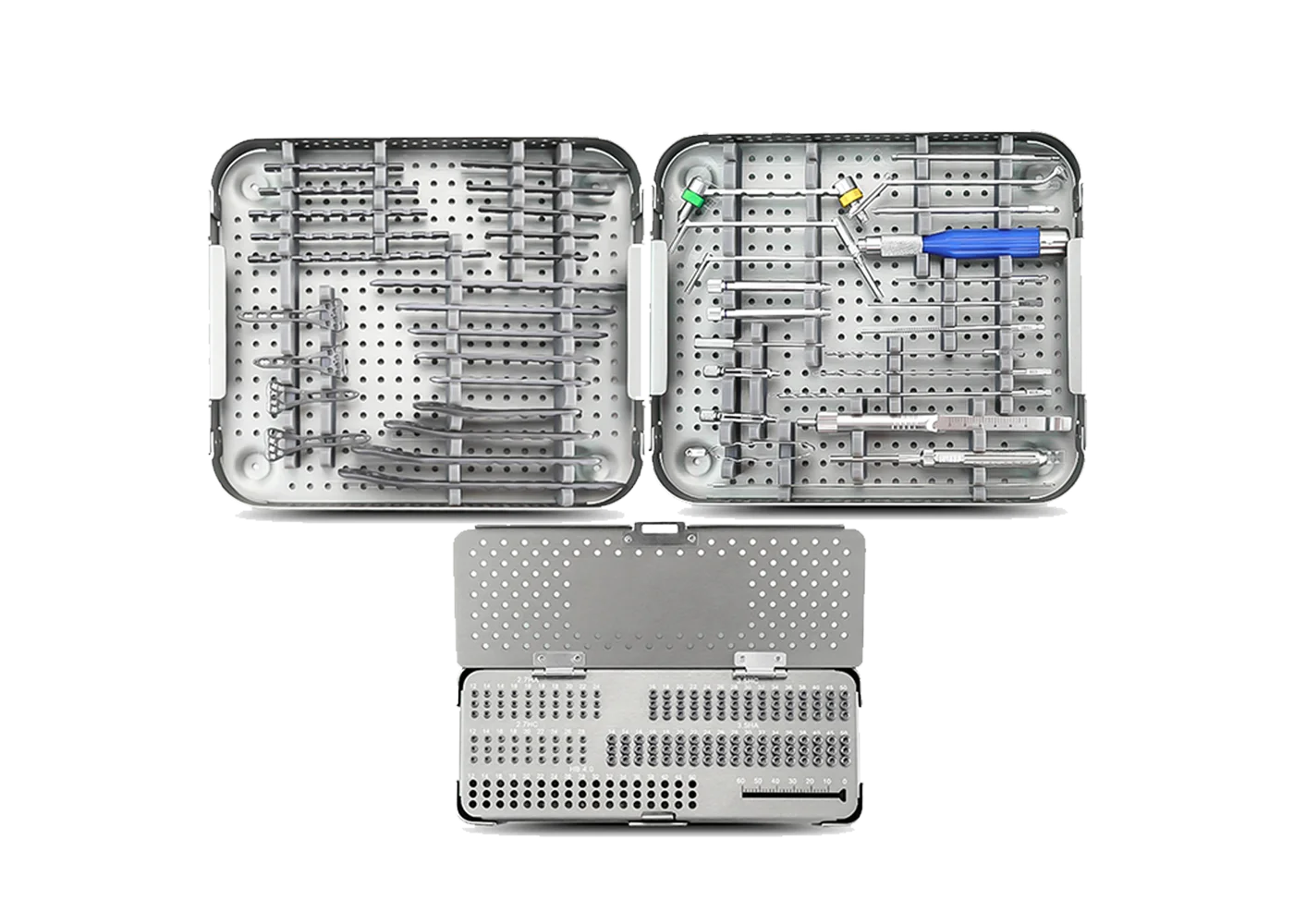

Small Surgery Instrument Set
The 2.7/3.5 mm small-fragment platform supports reduction, drilling, depth measurement, tapping and screw insertion, including tools for HA 3.5 and HB 4.0 screws.

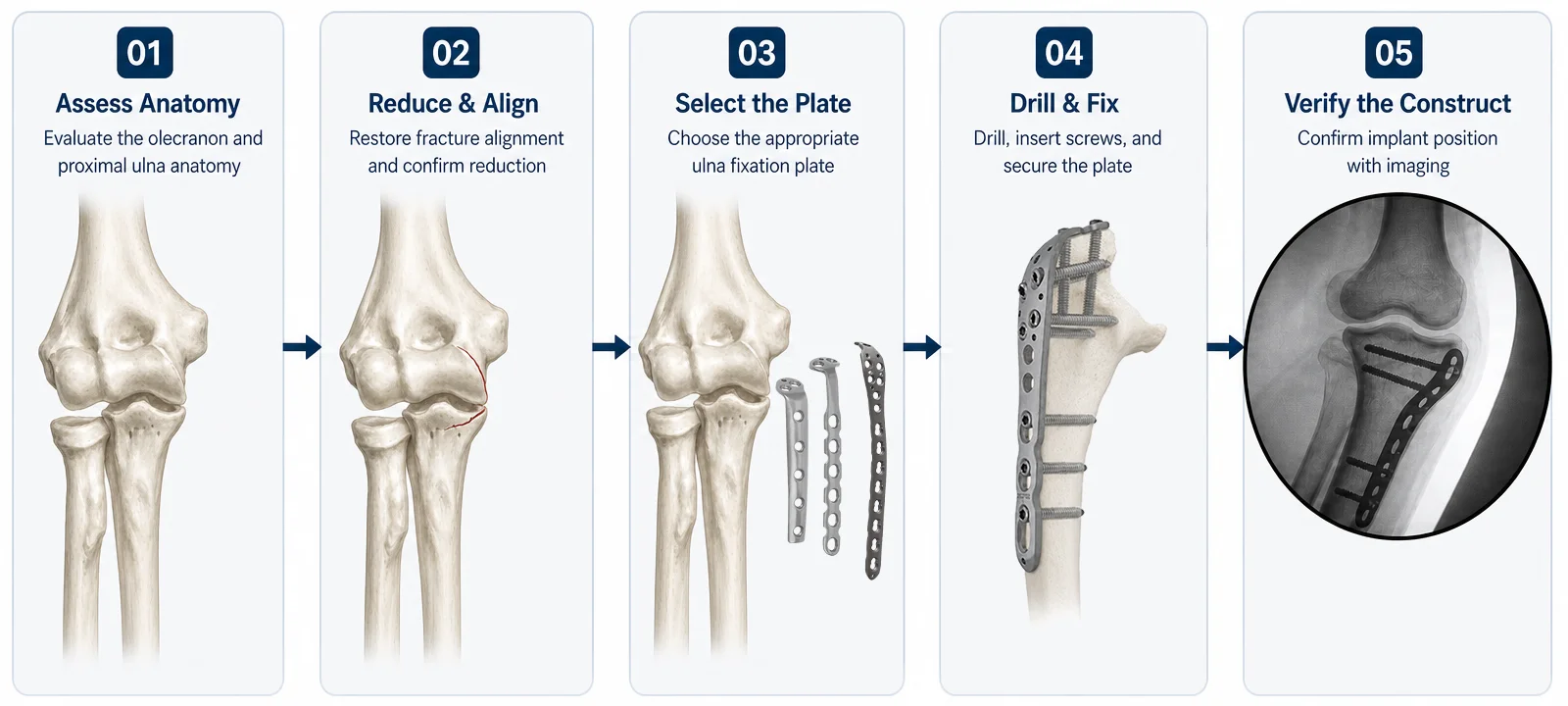

Procedure Coordination
Fixation Workflow
01
Assess Anatomy
02
Reduce & Align
03
Select the Plate
04
Drill & Fix
05
Verify the Construct
System Value
System Advantages
Focused Plate Portfolio
Cover locking, standard and reconstruction configurations in one project plan.
Left & Right Options
Match anatomic locking and reconstruction plate references to the required side.
Structured Size Coverage
Compare hole counts from compact 3H options through 12H locking plates.
Coordinated Instrumentation
Pair plates and screws with one small-fragment instrument platform.
Selection Support
System Matching Guide
Provide these project details for a focused implant, screw and instrument proposal.
Anatomy & Pattern

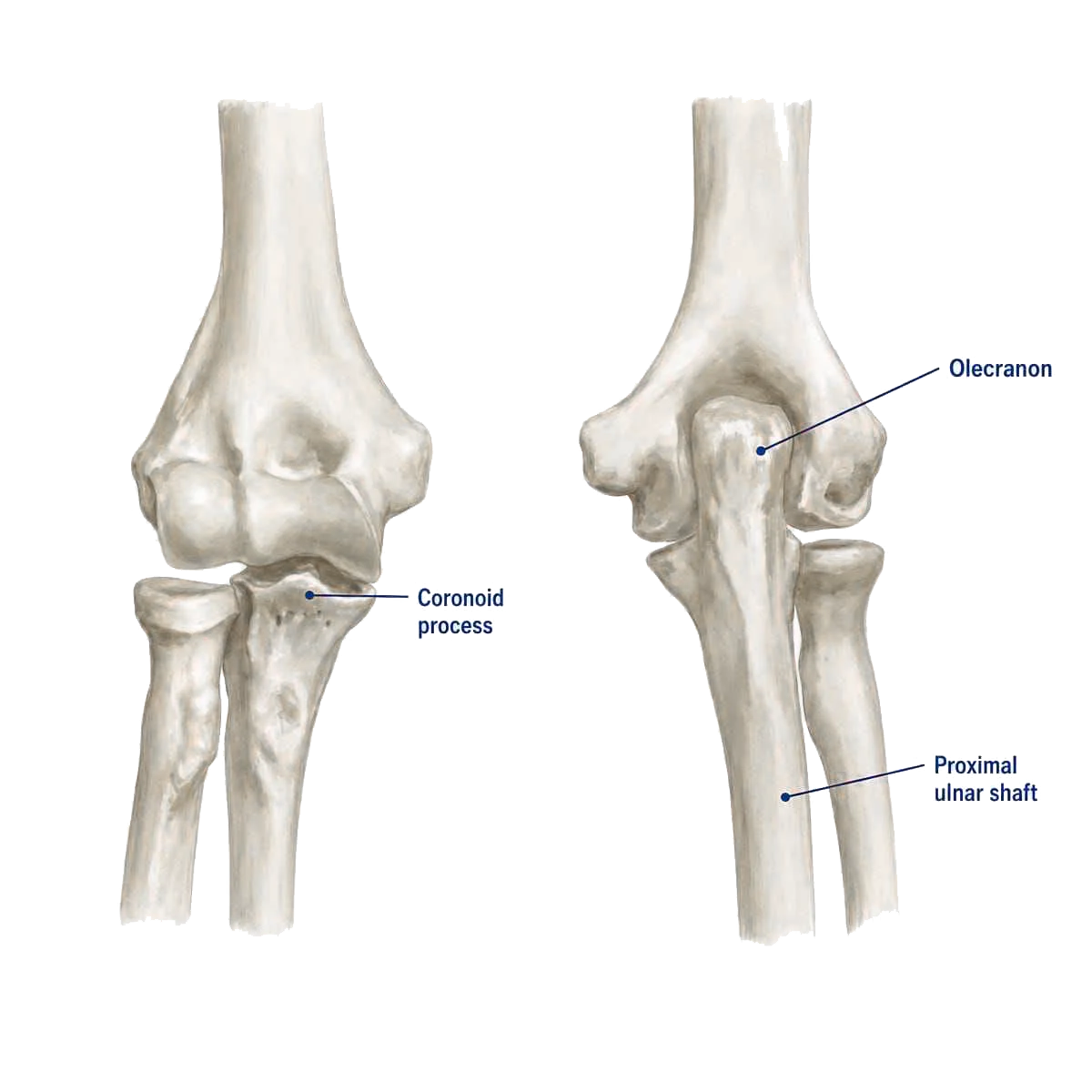

- Olecranon or proximal ulna region
- Available imaging
- Left or right side
Plate Configuration
- Locking or non-locking preference
- Standard or reconstruction profile
- Required hole counts
Project Requirements
- Screw families and length range
- Instrument set requirements
- Market, quantity and delivery plan
B2B Support
Partnership Solutions
Product Matching
Plate, side, size and screw configuration support.
Sample Evaluation
Project-based sample and technical review coordination.
Distributor Support
Portfolio, catalog and training-material support.
OEM / ODM
Packaging, branding and project requirement support.
Explore XC Medico's orthopedic OEM and ODM services for private-label and distributor projects.
Internal Resources
Related Trauma Systems
Trauma & Fracture Fixation Solutions
Explore systems →Radius & Ulna Trauma Implants
View portfolio →Clavicle Fracture Fixation Solution
Explore solution →FAQ
Frequently Asked Questions
How do the three plate families differ?
The Ulna Olecranon Locking Plate provides left/right locking options from 3H to 12H. The Olecranon Plate offers compact 3H-6H non-locking fixation, while the Reconstruction Plate adds left/right profiles across the same range.
What information is needed for accurate system matching?
Share the fracture region, available imaging, left/right side, preferred plate type, required hole count and expected quantity. This allows the plate, screw and instrument references to be checked together.
How can screw compatibility errors be avoided?
Match screws to the exact plate family: HA 3.5 and HC 3.5 for the locking plate; HA 3.5 and HB 4.0 for the two non-locking plates. Confirm the required lengths before ordering.
Can one instrument set support locking and non-locking configurations?
RQBT01 covers the main small-fragment drilling, guiding, depth measurement, tapping and insertion workflow, including tools for HA 3.5 and HB 4.0 screws. Confirm the final contents against the selected configuration.
Can XC Medico prepare a complete sample or tender package?
Yes. The proposal can combine selected plate sides and sizes, compatible screw ranges, the RQBT01 instrument set and project documentation for evaluation or procurement.
What should be confirmed before placing an order?
Confirm the exact implant reference, side, hole count, screw family, instrument requirement, destination market and current labeling. Availability can then be checked as one coordinated system.
