Hand, Metacarpal & Phalangeal Fracture Solution

Mini locking plates, matched screws and micro fragment instruments for your hand fixation portfolio.

Explore Plate Systems Plan Your Configuration

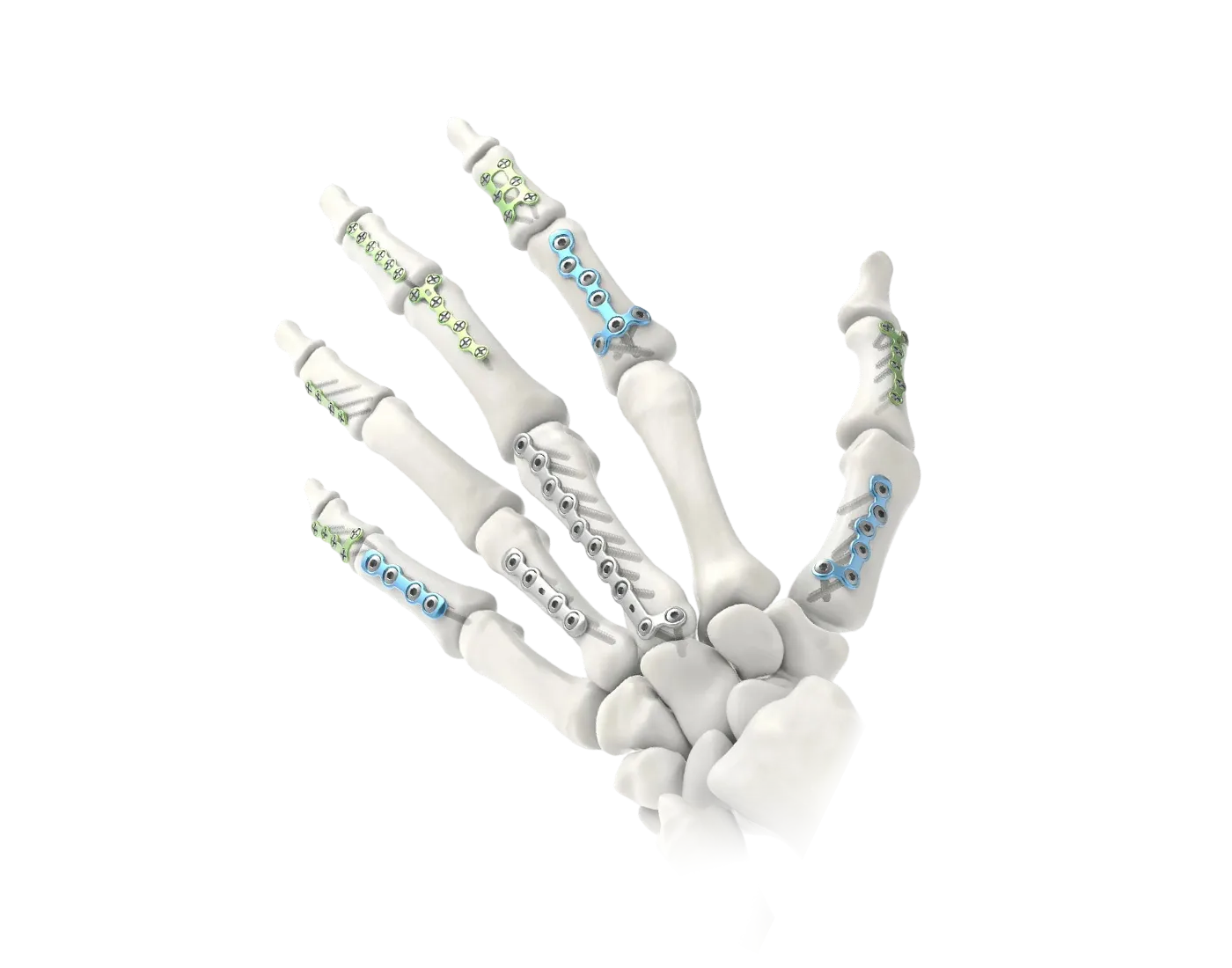

Hand skeleton and mini plate fixation portfolio

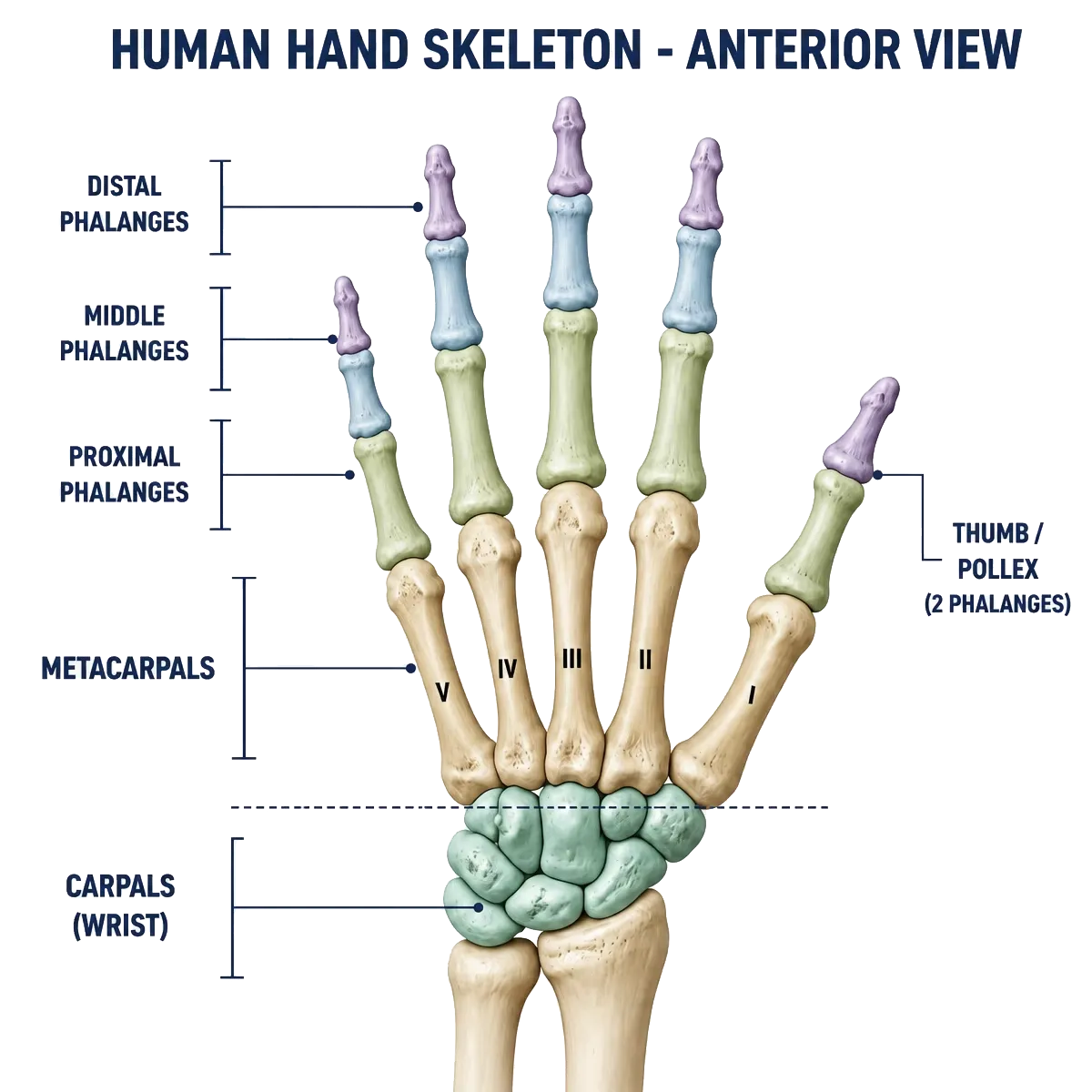

Metacarpal and phalangeal anatomy

Fixation for the Small Bones of the Hand

Build a hand fixation range around titanium mini plates, selected screw platforms and coordinated instruments.

Explore the broader metacarpal and phalangeal implant portfolio alongside the configurations below.

Metacarpals
Plate shape and length matched to the planned fixation.
Phalanges
Confirm the exact implant indication and anatomical fit.

Anatomy Comes First

Separate metacarpal and phalangeal planning views

Fracture Location

Identify the involved bone and the base, shaft or head region before selecting a plate configuration.

Implant Fit

Review plate geometry, available fixation space and the surrounding soft tissues with the treating surgeon.

Clinical Scope

Final implant selection follows patient-specific assessment and the approved instructions for use.

Plate Shapes, Clearly Organized

Straight reconstruction T Y and L mini locking plate shapes

Straight & Reconstruction

Linear configurations across the 1.5, 2.0, 2.4 and 2.7 mm platforms.

T-Shaped & Y-Shaped

T-shaped options across all four platforms; Y-shaped options in 1.5, 2.0 and 2.4 mm.

L-Shaped

Standard and oblique L-shaped plates in the 2.7 mm platform, with left/right options.

Mini Locking Plate Platforms

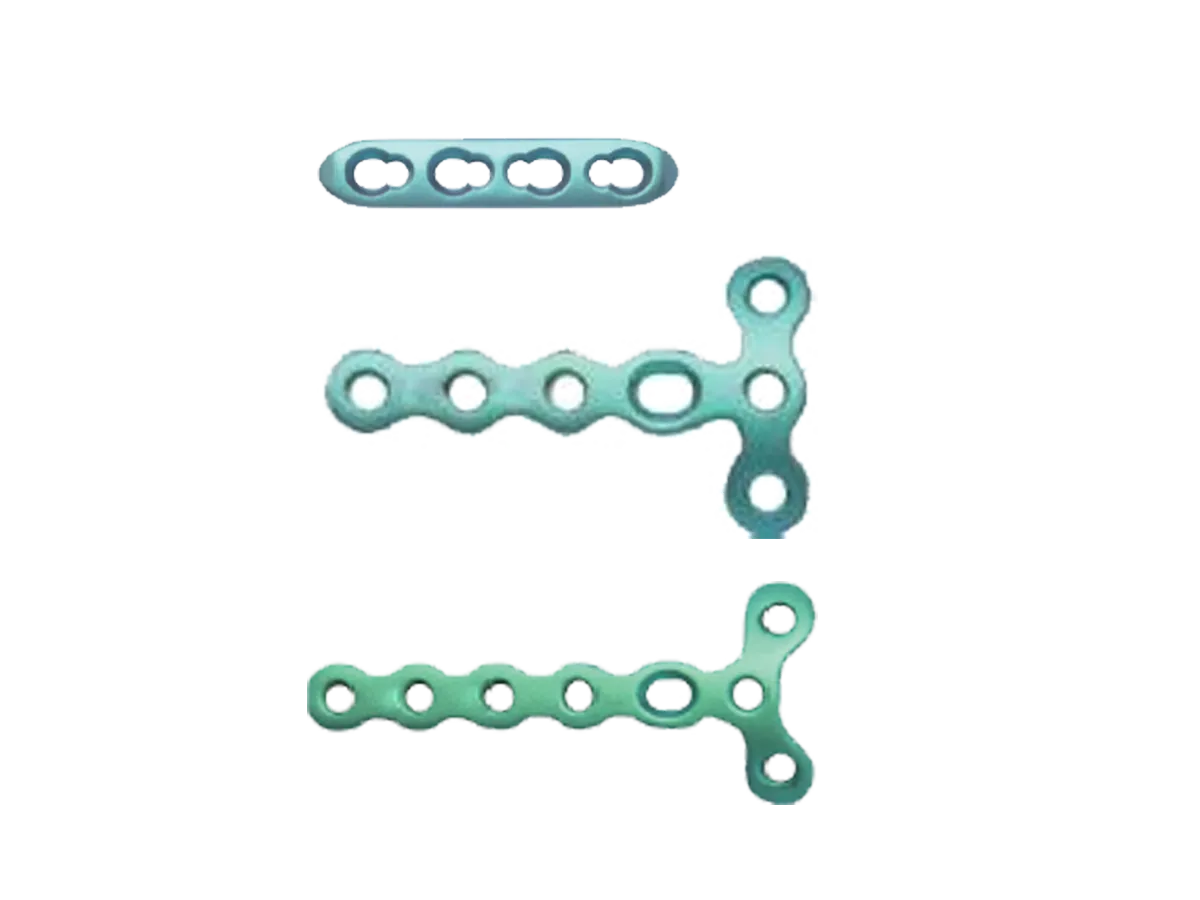

1.5 mm titanium mini locking plate configurations
1.5 mm

Mini Locking Plates

Straight, reconstruction, T-shaped and Y-shaped titanium plates.

Straight and reconstruction: 4, 5, 6 or 8 holes.
HA 1.5 / HC 1.5 by plate reference. Reconstruction plate: HC 1.5.

Explore 1.5 mm plates

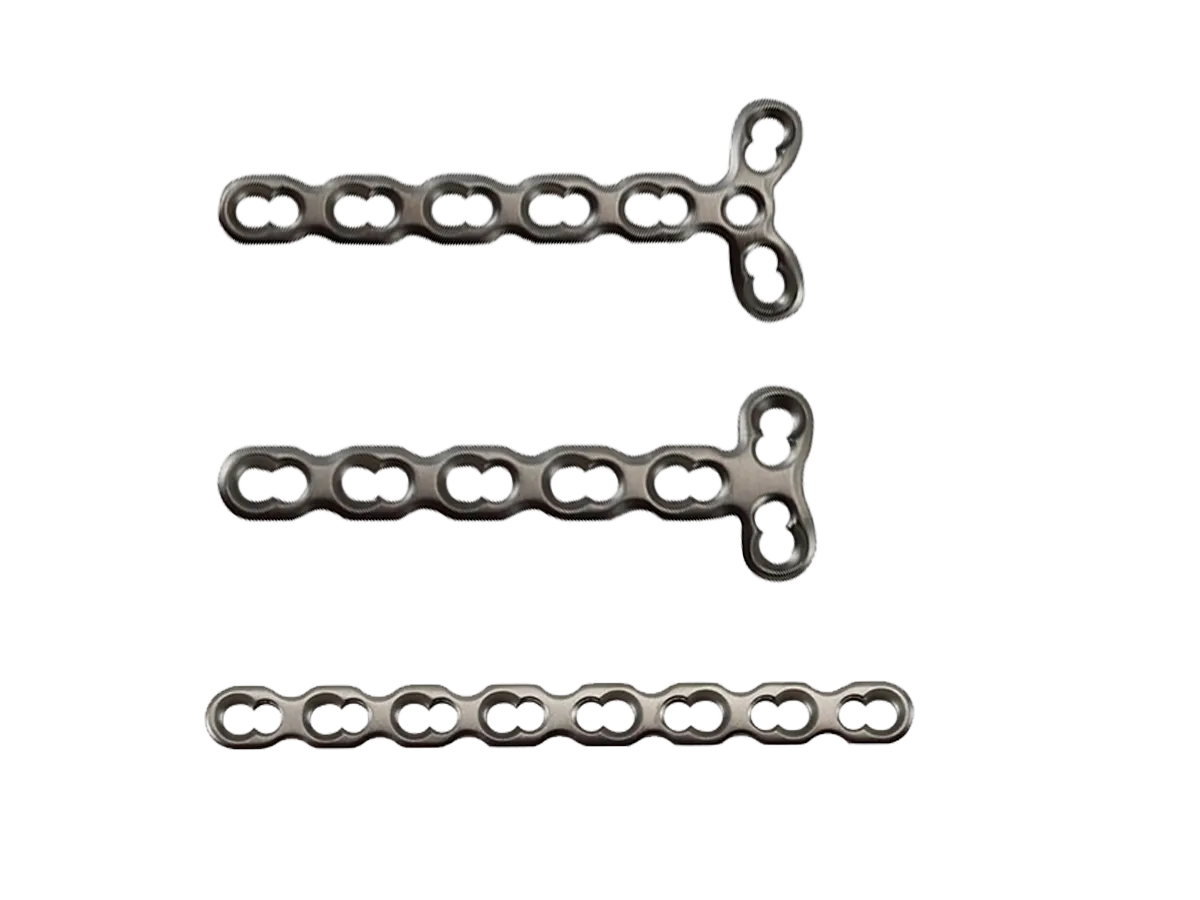

2.0 mm titanium mini locking plate configurations
2.0 mm

Mini Locking Plates

Straight, reconstruction, T-shaped and Y-shaped titanium plates.

Straight: 4, 5, 6 or 8 holes. Reconstruction: also 10 holes.
HA 2.0 / HC 2.0 screw platform.

Explore 2.0 mm plates

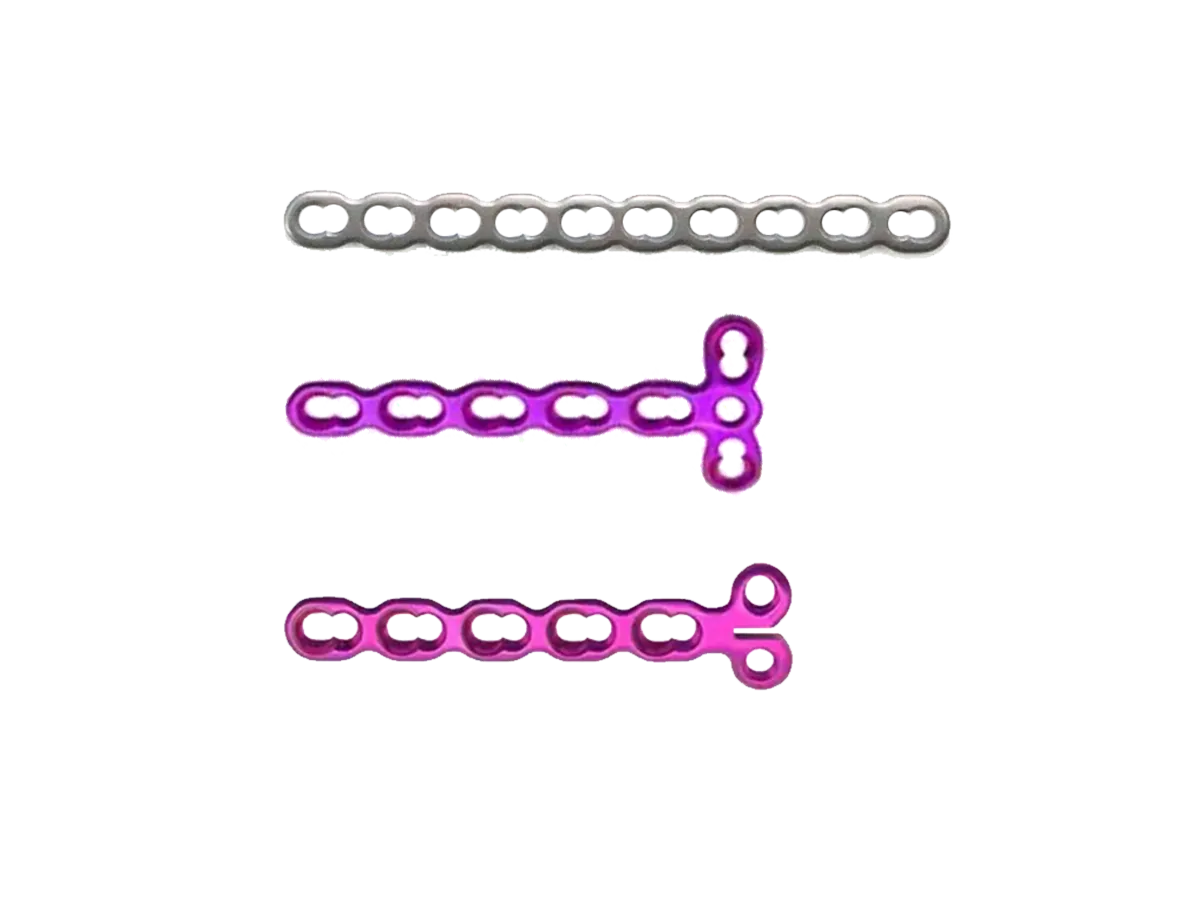

2.4 mm titanium mini locking plate configurations
2.4 mm

Mini Locking Plates

Straight, reconstruction, T-shaped and Y-shaped titanium plates.

Straight: 4, 5, 6, 8 or 10 holes. Reconstruction: 4, 6, 8 or 10.
HA 2.4 / HC 2.4 screw platform.

Explore 2.4 mm plates

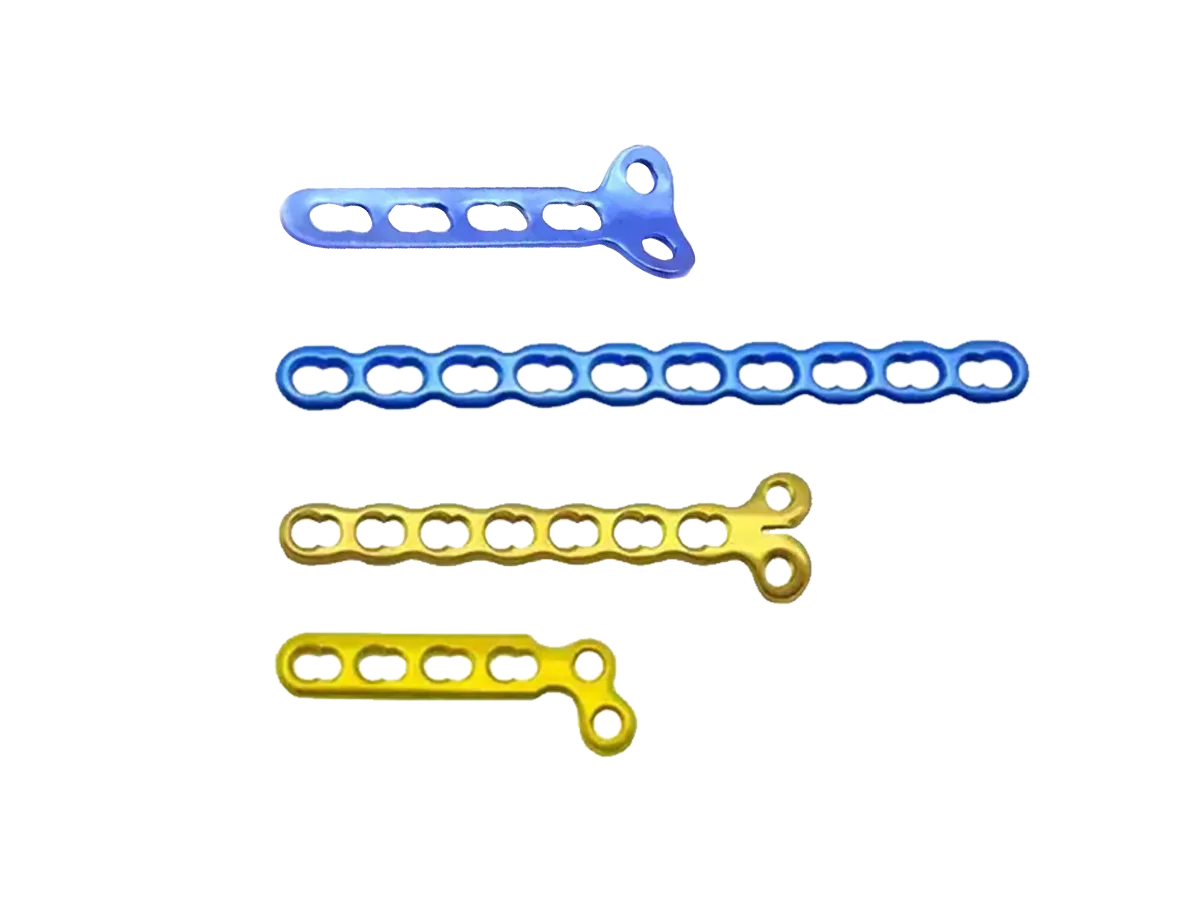

2.7 mm titanium mini locking plate configurations
2.7 mm

Mini Locking Plates

Straight, reconstruction, T-shaped, L-shaped and oblique L-shaped titanium plates.

Straight: 4, 6 or 8 holes. L-shaped options: left and right.
HA 2.7 / HC 2.7 screw platform.

Explore 2.7 mm plates

Hole ranges vary by plate shape. Confirm the exact plate reference and screw compatibility rather than transferring one family's specifications to another.

Complete the System

Hand fixation plate screw and instrument configuration
Matched HA cortical and HC locking screw platforms

Screws Matched to the Plate

Coordinate diameter, screw family and length for each selected plate. Matching diameter alone does not confirm compatibility.

For an explanation of fixation principles, read our locking and non-locking plate comparison.

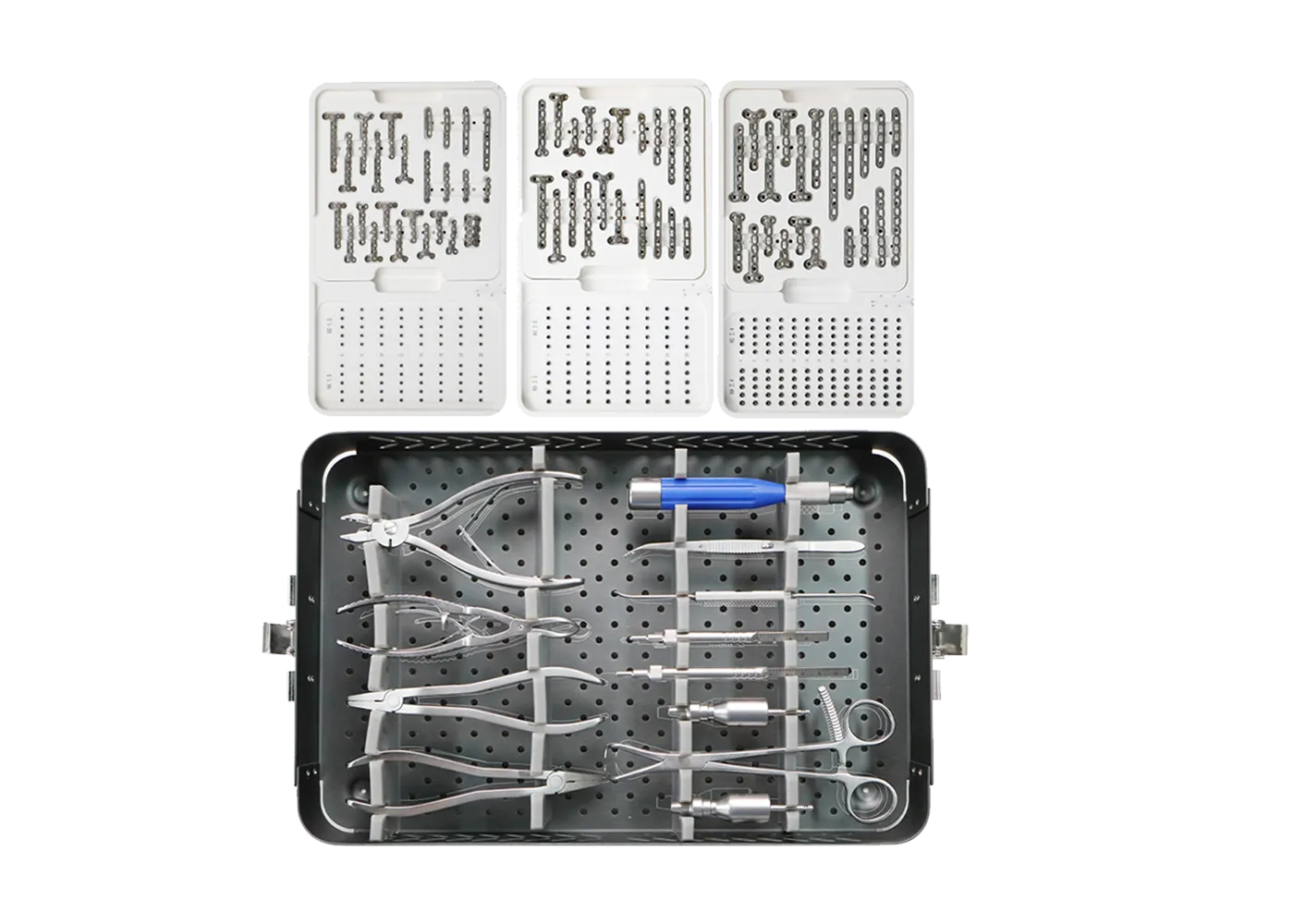

1.5 2.0 2.4 mm micro fragment locking instrument set without implants

Micro Fragment Instrument Set

Combined 1.5/2.0/2.4 mm instrumentation for reduction, drilling, measurement and screw insertion. Implants supplied separately.

View instrument set

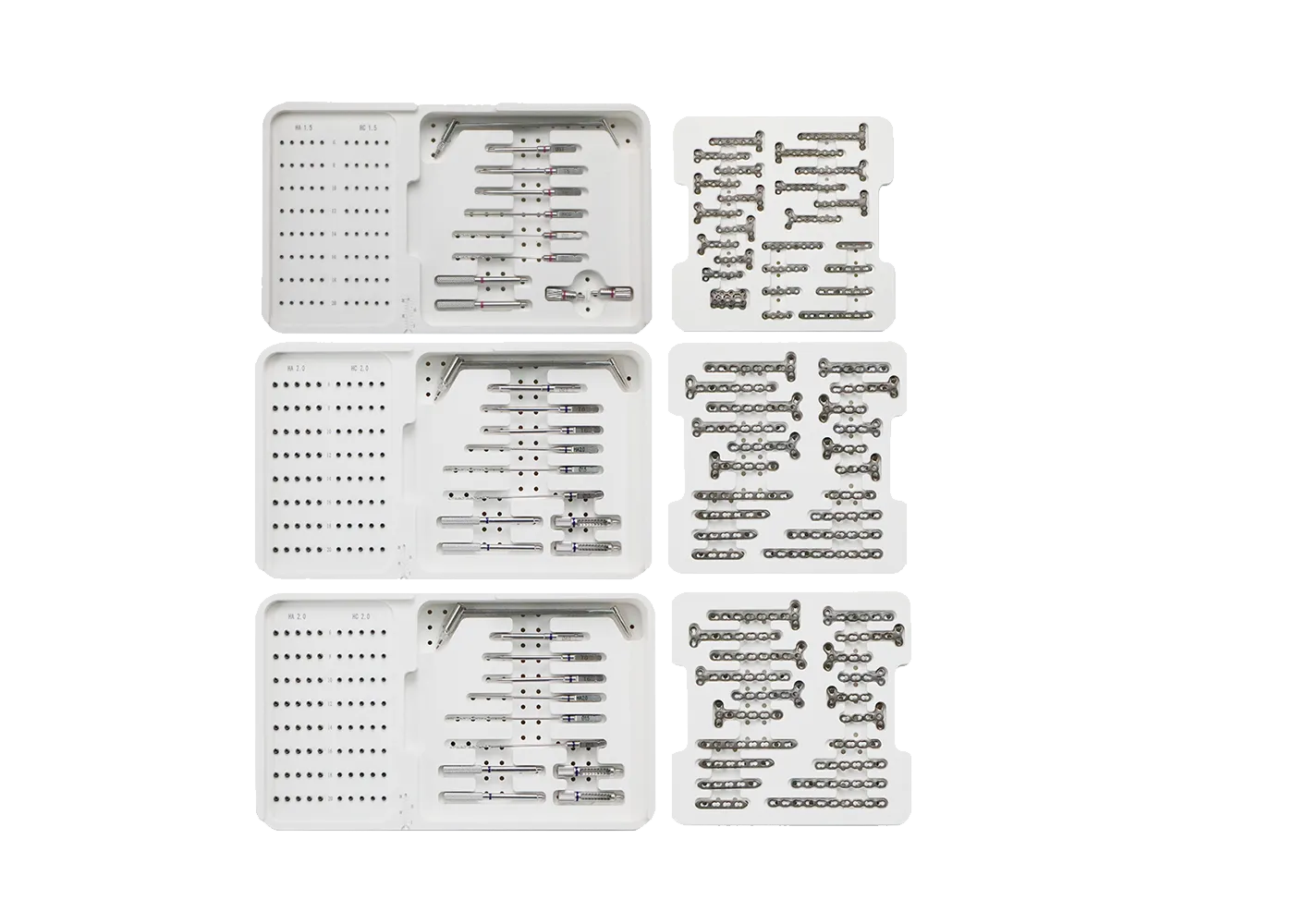

Separate 1.5 2.0 and 2.4 mm micro fragment implant and instrument sets

Platform-Specific Sets

Separate 1.5, 2.0 and 2.4 mm sets combine selected plates, screws and tools. Review the tray contents before ordering.

Shared reduction and measuring tools are available through the Micro Fragment General Instrument Set.

Planning to Final Verification

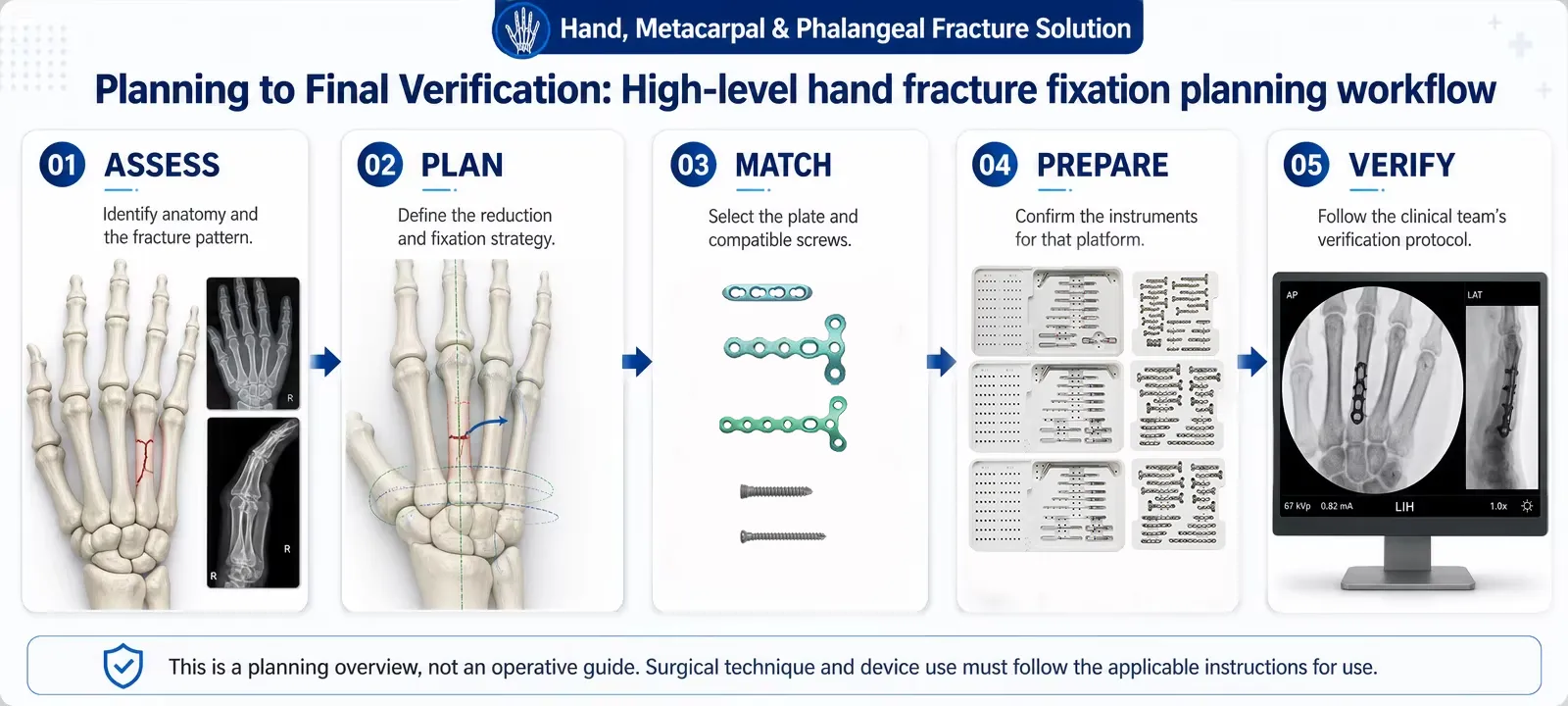

High-level hand fracture fixation planning workflow
  1. AssessIdentify anatomy and the fracture pattern.
  2. PlanDefine the reduction and fixation strategy.
  3. MatchSelect the plate and compatible screws.
  4. PrepareConfirm the instruments for that platform.
  5. VerifyFollow the clinical team's verification protocol.

This is a planning overview, not an operative guide. Surgical technique and device use must follow the applicable instructions for use.

System Selection Guide

Plate Reference

Confirm shape, hole count and side where applicable. Avoid ordering by platform size alone.

Screw Family

Check HA or HC compatibility for the exact plate. The 1.5 mm reconstruction plate requires HC 1.5.

Instrument Coverage

Choose a loaded set or instruments only. Confirm 2.7 mm tooling separately.

Supply Scope

Specify quantities, packaging, destination market and required documentation.

Manufacturing Behind Your Hand Portfolio

Discuss implant production, inspection and instrument-set assembly as one coordinated supply project.

For private-label requirements, explore our orthopedic OEM and ODM services.

XC Medico implant manufacturing inspection and instrument assembly

Hand Fixation FAQ

Which platform should we include in a hand fixation set?

Start with the plate references requested by your clinical team, then match screw diameters, lengths and instruments. The four platforms are portfolio choices, not a universal size-to-bone selection rule.

Are all four platforms suitable for every phalangeal fracture?

No. Phalangeal use requires confirmation for the exact implant, anatomy and approved indication. A general hand-system description does not establish suitability for every plate or fracture.

Can locking and cortical screws be used interchangeably?

Do not assume so. Match the screw family to the specific plate and hole. For example, the 1.5 mm Reconstruction Locking Plate specifies HC 1.5 locking screws, unlike several HA 1.5 / HC 1.5 options.

Does the instrument set include plates and screws?

The combined 1.5/2.0/2.4 mm instrument set contains no implants. Separate platform-specific sets include implant selections. Confirm the itemized tray contents and quantities before ordering.

Can one instrument set cover the 2.7 mm platform as well?

The combined set shown here is for 1.5, 2.0 and 2.4 mm platforms. A 2.7 mm configuration requires separate confirmation of drills, guides, taps and drivers.

What do you need to prepare a quotation?

Send the selected plate families and sizes, screw lengths and quantities, instrument requirements and destination market. Include any private-label or documentation requests.

Related Resources

Build Your Hand Fixation Set

Share your plate selection, screw range and instrument requirements for a coordinated quotation.

Request System Matching
